Description

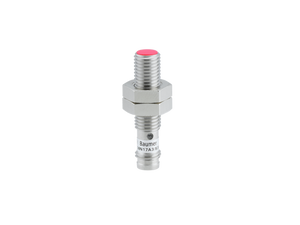

The Baumer IGYX 06P37B3/S35L is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and an assured sensing distance of 1.6 mm. It features a temperature drift of ±10% of Sr from 0 to +60 °C and a hysteresis of 3 to 20% of Sr. The sensor is equipped with a three-port red LED output indicator and operates at a switching frequency of 3 kHz. It requires a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 15 mA with no load. The output circuit is a PNP break function (NC) with a voltage drop of less than 2.5 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical and smooth, with a PBT red sensing face and a stainless steel housing. It measures 6.5 mm in diameter and 36 mm in housing length, and it connects via an M8 connector. The operating temperature range is from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IGYX-06P37B3-S35L_EN_20210429_DS.pdf?mediaPK=9018943864862).
