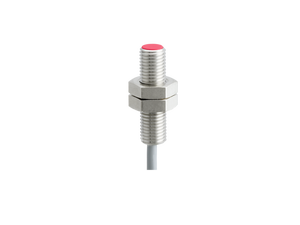

Baumer IGYX 08N17B3/S35L is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 2 mm and an assured sensing distance of 1.6 mm. It features a temperature drift of ±10% of Sr, hysteresis of 3-20% of Sr, and a switching frequency of 3 kHz. The sensor operates on a voltage supply range of 10-30 VDC, with a maximum current consumption of 15 mA when no load is present. It includes an NPN make function (NO) output circuit, with a voltage drop of less than 2.5 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. The sensing face is made of red PBT, while the housing is constructed from stainless steel. It measures 8 mm in diameter and 36 mm in length, connects via an M8 connector, and can be tightened with a maximum torque of 5 Nm. Operating temperatures range from -25 to +75 °C, and it is rated IP 67 for protection against dust and water ingress. For more details, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IGYX-08N17B3-S35L_EN_20210429_DS.pdf?mediaPK=9018794770462).
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 2 mm
- Assured sensing distance Sa:
- 1.6 mm
- Temperature drift:
- ± 10 % of Sr (0 ... +60 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2.5 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT, red
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 36 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 5 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
