Baumer IGYX 08P37B3/L

Baumer IGYX 08P37B3/L

Baumer
SKU:
11084718
Availability:
Contact us to confirm availability and lead times.
$32.60
Condition:
New
Current Stock:
Description

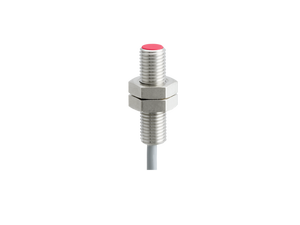

The Baumer IGYX 08P37B3/L is a flush-mounted inductive sensor with a nominal sensing distance of 2 mm and an assured sensing distance of 1.6 mm. It features a temperature drift of ±10% of Sr within a temperature range of 0 to +60 °C and a hysteresis of 3 to 20% of Sr. The sensor is equipped with a red LED output indicator and operates at a switching frequency of 3 kHz. It requires a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 15 mA with no load. The output circuit is a PNP break function (NC) with a voltage drop of less than 2.5 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's design is cylindrical threaded, made with a PBT red sensing face and a stainless steel housing. It measures 8 mm in diameter and 30 mm in housing length, and it connects via a 2-meter cable. The maximum tightening torque is 5 Nm. It operates within a temperature range of -25 to +75 °C and has an IP 67 protection class. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_IGYX-08P37B3-L_EN_20210429_DS.pdf?mediaPK=9018797391902).
Additional Information
Mounting type:
Flush
Nominal sensing distance Sn:
2 mm
Assured sensing distance Sa:
1.6 mm
Temperature drift:
± 10 % of Sr (0 ... +60 °C)
Hysteresis:
3 … 20 % of Sr
Output indicator:
LED red
Switching frequency:
3 kHz
Voltage supply range +Vs:
10 … 30 VDC
Current consumption max. (no load):
15 mA
Output circuit:
PNP break function (NC)
Voltage drop Vd:
<2.5 VDC
Output current:
200 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Material (sensing face):
PBT, red
Housing material:
Stainless steel
Dimension:
8 mm
Housing length:
30 mm
Connection types:
Cable, L=2 m
Tightening torque max.:
5 Nm
Operating temperature:
-25 … +75 °C
Protection class:
IP 67
Datasheet:
View
