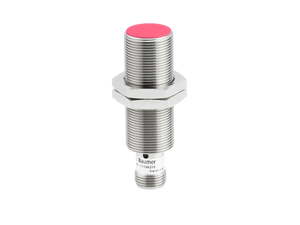

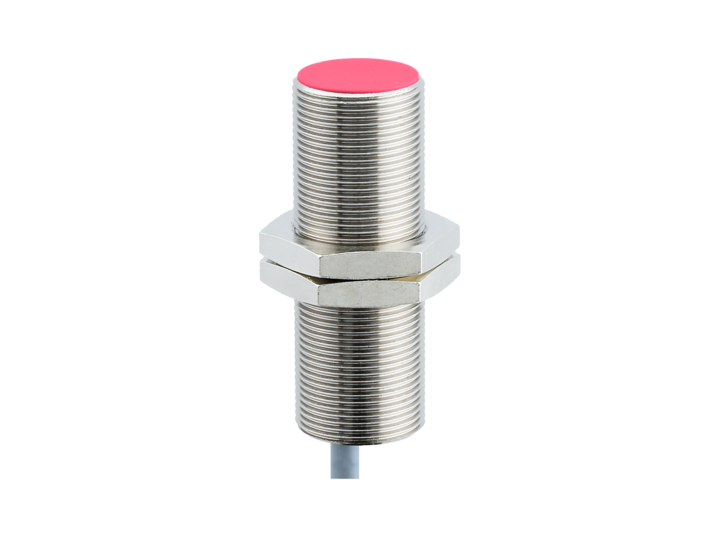

The Baumer IGYX 18N17B3/L is a quasi-flush, cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm and an assured sensing distance of 6.4 mm. It features a temperature drift of ±10% of Sr and a hysteresis range of 3-20% of Sr. The sensor is equipped with a red LED output indicator and operates at a switching frequency of 400 Hz. It requires a voltage supply range of 10-30 VDC and has a maximum current consumption of 15 mA with no load. The output circuit is an NPN make function (NO) with a voltage drop of less than 2.5 VDC and an output current of 200 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is made of red PBT. It measures 18 mm in diameter and 50 mm in housing length, and it connects via a 2-meter cable. The maximum tightening torque is 25 Nm. It operates within a temperature range of -25 to +75 °C and has an IP 67 protection class.
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Assured sensing distance Sa:
- 6.4 mm
- Temperature drift:
- ± 10 % of Sr (0 ... +60 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2.5 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT, red
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 50 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 25 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
