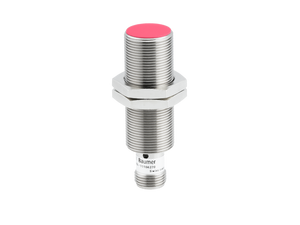

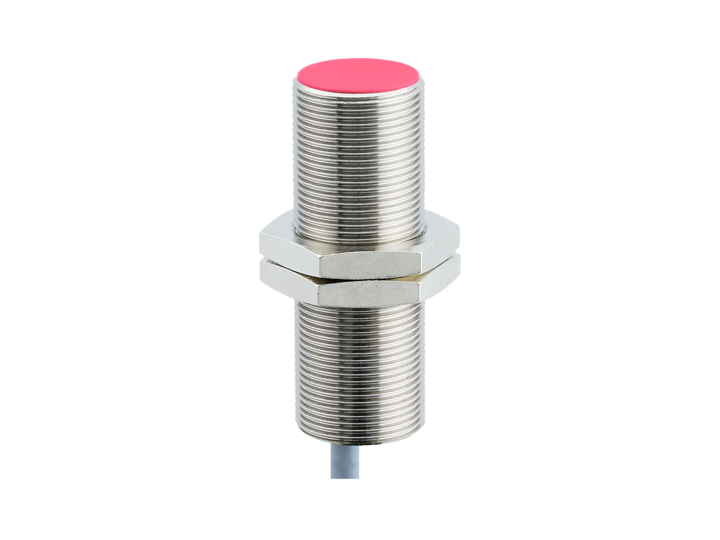

The Baumer IGYX 18P37B3/L is a quasi-flush, cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm and an assured sensing distance of 6.4 mm. It features a red LED output indicator and operates with a switching frequency of 400 Hz. The sensor supports a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 15 mA. It includes a PNP break function (NC) output circuit with a voltage drop of less than 2.5 VDC and an output current of 200 mA. The sensor is equipped with short circuit and reverse polarity protection. It is constructed with a PBT red sensing face and a brass nickel-plated housing, measuring 18 mm in diameter and 50 mm in length. The connection is facilitated via a 2-meter cable. It can withstand a tightening torque of up to 25 Nm and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, ensuring protection against dust and immersion.
- Mounting type:
- Quasi-flush
- Nominal sensing distance Sn:
- 8 mm
- Assured sensing distance Sa:
- 6.4 mm
- Temperature drift:
- ± 10 % of Sr (0 ... +60 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2.5 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT, red
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 50 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 25 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
