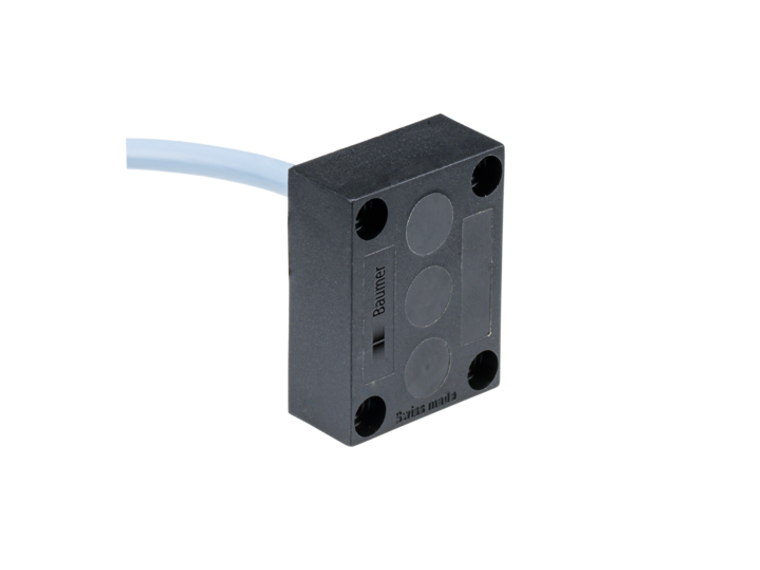

Baumer ILFK 12P1101/I03 10222808
Baumer
Baumer ILFK 12P1101/I03 10222808 is a non-flush, inductive code reader with a nominal sensing distance of 4 mm and a hysteresis of 1 to 20% of Sr. It features a switching frequency of 2 kHz and operates within a voltage supply range of 10 to 30 VDC. The device has a maximum current consumption of 10 mA when unloaded and includes a PNP make function (NO) output circuit. The voltage drop is less than 2 VDC, and it can handle an output current of up to 200 mA. It is equipped with short circuit and reverse polarity protection. The sensor has a rectangular design with a PA 6 sensing face and housing material. Dimensions include a 30 mm width and a 38 mm housing length, and it connects via a 2 m cable. It operates effectively in temperatures ranging from 0 to +60 °C and is rated IP 67 for protection against dust and water ingress. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_ILFK-12P1101-I03_EN_20221110_DS.pdf?mediaPK=9056368328734).
- Mounting type:
- Non-flush
- Special type:
- Inductive code reader
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 1 20 % of Sr
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PA 6
- Housing material:
- PA 6
- Dimension:
- 30 mm
- Housing length:
- 38 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
Related Products
-
-
-

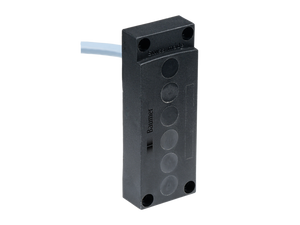

Baumer ILFK 12P1101/I06/0500
