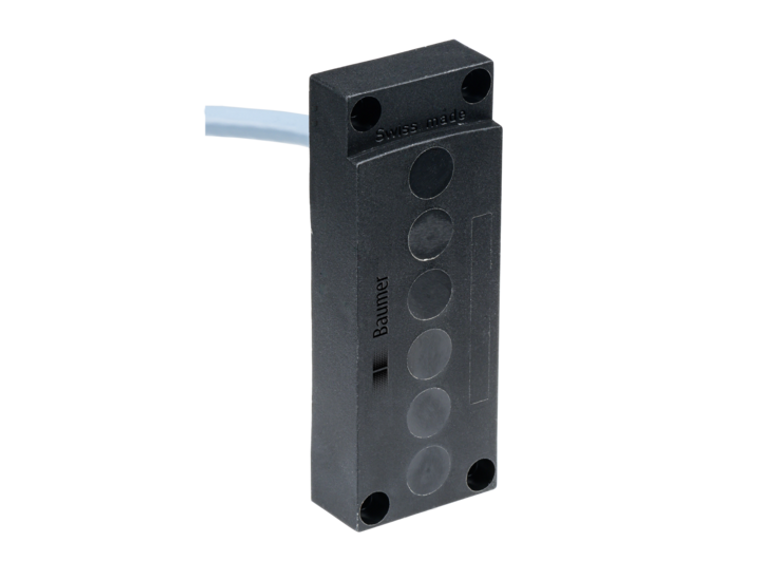

Baumer ILFK 12P1101/I06 10211799
Baumer
Baumer ILFK 12P1101/I06 10211799 is a non-flush, inductive code reader with a nominal sensing distance of 4 mm and a hysteresis range of 1 to 20% of Sr. It operates at a switching frequency of 2 kHz and requires a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA when no load is present. The output circuit is a PNP make function (NO) with a voltage drop of less than 2 VDC and an output current of 200 mA. It features short circuit and reverse polarity protection. The sensor has a rectangular design with a housing and sensing face made of PA 6, dimensions of 30 mm, and a housing length of 79 mm. It includes a 2-meter cable for connection and operates within a temperature range of 0 to +60 °C. The device is protected by an IP 67 rating, ensuring durability in various environments. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_ILFK-12P1101-I06_EN_20221110_DS.pdf?mediaPK=9056368984094).
- Mounting type:
- Non-flush
- Special type:
- Inductive code reader
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 1 20 % of Sr
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PA 6
- Housing material:
- PA 6
- Dimension:
- 30 mm
- Housing length:
- 79 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
