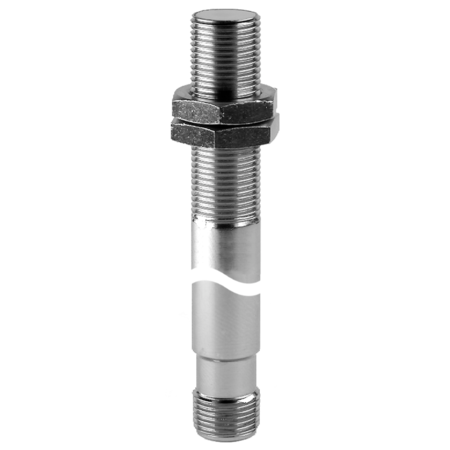

The Baumer IPRM 12I9504/S14 11017454 is a quasi-flush mounted inductive sensor designed for precision measurement with a measuring distance of 0.5 to 1.5 mm. It offers high resolution, achieving less than 0.01 µm in static conditions and less than 0.004 µm at range center. The sensor maintains a linearity error of ± 50 µm and repeat accuracy of less than 1 µm. It operates effectively within a temperature range of 0 to +60 °C and is equipped with a current output signal of 0 to 20 mA. The cylindrical threaded design, with a 12 mm diameter and 90 mm housing length made of steel, ensures durability, while the ceramic sensing face provides robustness against wear. It features short circuit and reverse polarity protection, operates on a 15 to 30 VDC voltage supply, and is IP 67 certified for dust and water resistance. The sensor connects via an M12 connector, ensuring easy integration into various industrial applications.
- Mounting type:
- Quasi-flush
- Measuring speed:
- < 1 mm / ms
- Measuring distance Sd:
- 0.5 1.5 mm
- Resolution (RMS):
- < 0.01 µm (stat. 10 Hz) < 0.06 µm (dynam. 520 Hz) < 0.004 µm (range center)
- Linearity error:
- ± 50 µm
- Repeat accuracy (Sd):
- < 1 µm
- Temperature drift:
- ± 10 µm
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Current output
- Output signal:
- 0 ... 20 mA
- Load resistance +Vs min.:
- < 100 Ohm
- Load resistance +Vs max.:
- < 400 Ohm
- Voltage drop Vd:
- <7 VDC
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Dimension:
- 12 mm
- Housing length:
- 90 mm
- Housing material:
- Steel (9 SMn (Pb) 28/36)
- Material (sensing face):
- Ceramic
- Connection types:
- Connector M12
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
