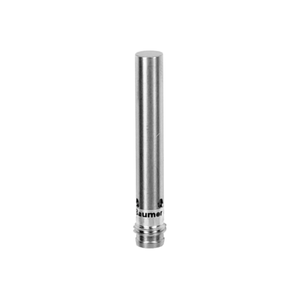

Baumer IR06.P03S-F46.PC1Z.7SL 11148740 is a flush-mounted, cylindrical proximity sensor with an enhanced sensing distance. It features a nominal sensing distance of 3 mm and operates with a temperature drift of ±10%. The sensor has a hysteresis range of 3 to 20% of Sr and includes a three-port LED red output indicator. It is designed to work effectively with different materials, offering correction factors of 100% for mild steel, 65% for stainless steel, and 30% for aluminum. The switching frequency is 2 kHz, and it supports a voltage supply range of 6 to 36 VDC with a maximum current consumption of 10 mA at no load. The output circuit is a PNP break function (NC) with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of stainless steel with a PBT sensing face, measuring 6.5 mm in diameter and 46 mm in length. It connects via an M8 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 3 mm
- Temperature drift:
- ± 10 %
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 65 %, aluminum 30 %
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 6.5 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
