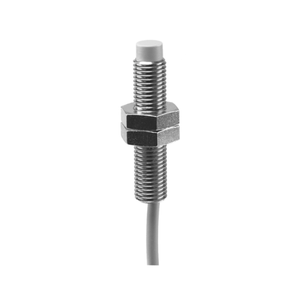

The Baumer IR06.P06S-N40.PC1Z.7SCV 11148737 is a non-flush, cylindrical proximity sensor with an enhanced sensing distance, designed for reliable detection in industrial environments. It features a nominal sensing distance of 6 mm and operates with a temperature drift of ±10% at temperatures from 0 to +60°C and ±15% from -25 to +75°C. The sensor's hysteresis ranges from 3 to 20% of Sr, ensuring precise operation. It includes a red LED output indicator and supports various materials with correction factors of 100% for mild steel, 80% for stainless steel, and 50% for aluminum. The switching frequency is 400 Hz, and it operates on a voltage supply range of 6 to 36 VDC, with a maximum current consumption of 12 mA. The output circuit is a PNP break function (NC), with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of stainless steel with a PBT sensing face, measuring 6.5 mm in diameter and 40 mm in length. It connects via a 2-meter cable and operates within a temperature range of -25 to +75°C. The sensor is IP 67 rated, indicating a high level of protection against dust and water ingress. For more detailed information, refer to the datasheet linked [here](https://www.baumer.com/medias/__secure__/Baumer_IR06.P06S-N40.PC1Z.7SCV_EN_20221110_DS.pdf?mediaPK=9056210321438).
- Mounting type:
- Non-flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 6 mm
- Temperature drift:
- ± 10 % (0 ... +60 °C) ± 15 % (-25 ... +75 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 80 %, aluminum 50 %
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 6.5 mm
- Housing length:
- 40 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
