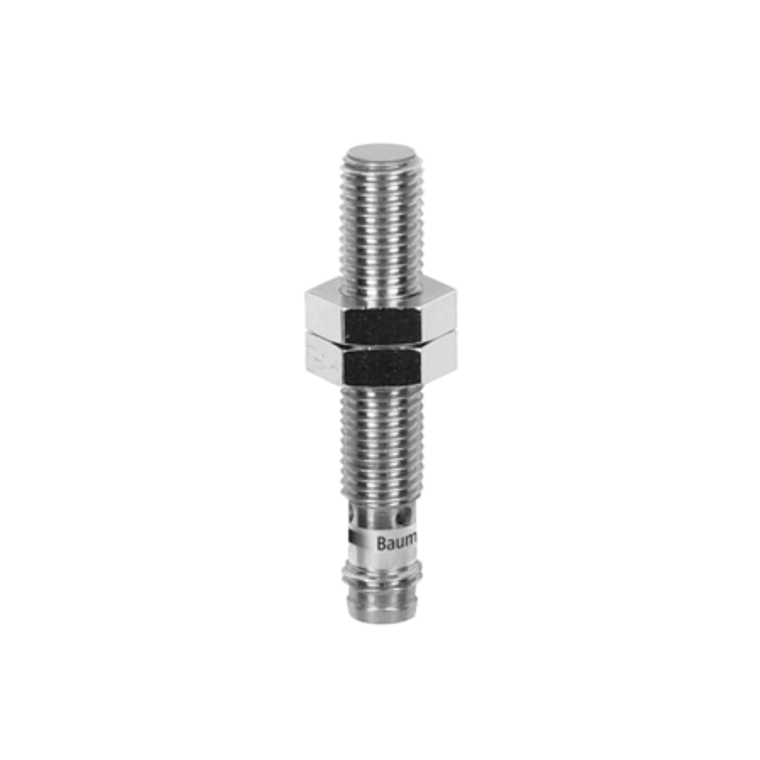

The Baumer IR08.P03S-F46.NO1Z.7SL 11148760 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced distance feature for reliable detection and a nominal sensing distance of 3 mm. It includes a temperature drift of ±10% and a hysteresis range of 3-20% of Sr. Equipped with a three-port red LED output indicator, this sensor offers a correction factor of 100% for mild steel, 65% for stainless steel, and 30% for aluminum. It operates at a switching frequency of 2 kHz and supports a voltage supply range of 6-36 VDC with a maximum current consumption of 10 mA. The output circuit is an NPN make function (NO) with a voltage drop of less than 2 VDC and an output current of 100 mA. It features short circuit and reverse polarity protection. The sensor's housing is made of stainless steel with a PBT sensing face, and it measures 8 mm in diameter and 46 mm in length. It connects via an M8 connector and has a maximum tightening torque of 10 Nm. Suitable for operating temperatures ranging from -25 to +75 °C, it is IP67 rated for protection against dust and water ingress.
- Mounting type:
- Flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 3 mm
- Temperature drift:
- ± 10 %
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 65 %, aluminum 30 %
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 8 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Tightening torque max.:
- 10 Nm (A: 7 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
