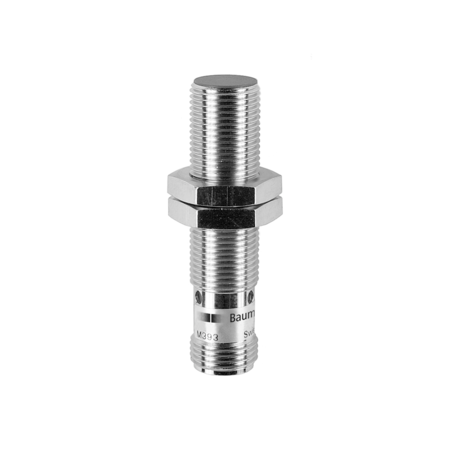

Baumer IR12.P04F-F50.NO1Z.7BO 11116610 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm and an assured sensing distance of up to 81% of Sn. It features a stable sensing range with a temperature drift and hysteresis of ±10% and 3-20% of the real sensing distance, respectively. The sensor is equipped with a red LED output indicator and supports a universal correction factor for various metals like mild steel, stainless steel, aluminum, and copper. It operates within a voltage supply range of 5 to 36 VDC, with a maximum output current of 200 mA and includes short circuit and reverse polarity protection. The sensor's robust design includes a PBT sensing face and a brass nickel-plated housing, ensuring durability with IP67 protection against dust and water. It can withstand significant environmental challenges, including vibrations and shocks as specified by IEC standards. Suitable for diverse industrial applications, it ensures reliable performance in a temperature range from -25 to +75 °C. The sensor connects via an M12 4-pin connector and is designed for easy installation with a maximum tightening torque of 10 Nm.
- Mounting type:
- Flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 4 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 12 x 12 x 1 mm
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Connector M12 4 pin
- Tightening torque max.:
- 10 Nm
- Weight:
- 25 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
