Baumer IR12.P06S-F40.NO1Z.7BCV 11148363
Baumer
$167.80

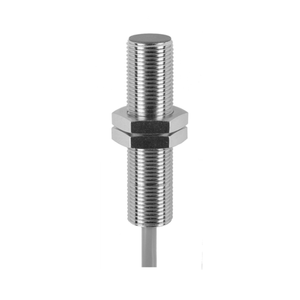

The Baumer IR12.P06S-F40.NO1Z.7BCV 11148363 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced distance feature. It has a nominal sensing distance of 6 mm and operates with a temperature drift of ±10%. The sensor features a red LED output indicator and offers a switching frequency of 1 kHz. It supports a voltage supply range of 6 to 36 VDC and consumes a maximum of 10 mA with no load. The output circuit is an NPN make function (NO) with a maximum output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is made of PBT. It measures 12 mm in diameter and 40 mm in length, with a connection via a 2-meter cable. The sensor can operate in temperatures ranging from -25 to +75 °C and is IP 67 rated for protection against dust and water ingress.
- Mounting type:
- Flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 6 mm
- Temperature drift:
- ± 10 %
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 75 %, aluminum 45 %
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 40 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
