Description

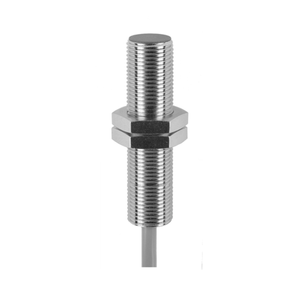

The Baumer IR12.P06S-F40.PC1Z.7BCV 11148657 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced distance feature. It offers a nominal sensing distance of 6 mm and operates with a temperature drift of ±10%. The sensor has a hysteresis range of 3 to 20% of Sr and includes a red LED output indicator. It is designed to work with various materials, having correction factors of 100% for mild steel, 75% for stainless steel, and 45% for aluminum. The switching frequency is 1 kHz, and it requires a voltage supply range of 6 to 36 VDC with a maximum current consumption of 10 mA. The output circuit is a PNP break function (NC) with a voltage drop of less than 2 VDC and an output current of 100 mA. It features short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is PBT. Dimensions include a 12 mm diameter and a 40 mm housing length, with a 2-meter cable connection. It can withstand a tightening torque of up to 15 Nm and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and water ingress.
