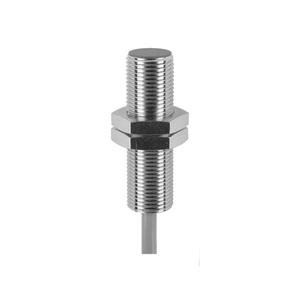

The Baumer IR12.P06S-F50.PC1Z.7BCV 11148655 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced distance feature. It has a nominal sensing distance of 6 mm and operates with a temperature drift of ±10%. The sensor features a red LED output indicator and offers a switching frequency of 1 kHz. It supports a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 10 mA when no load is present. The output circuit is a PNP break function (NC) with a maximum output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is constructed from PBT. It measures 12 mm in diameter and 50 mm in housing length, and it connects via a 2-meter cable. The maximum tightening torque is 15 Nm. This sensor operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 6 mm
- Temperature drift:
- ± 10 %
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 75 %, aluminum 45 %
- Switching frequency:
- 1 kHz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 50 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 15 Nm (A: 10 Nm)
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
