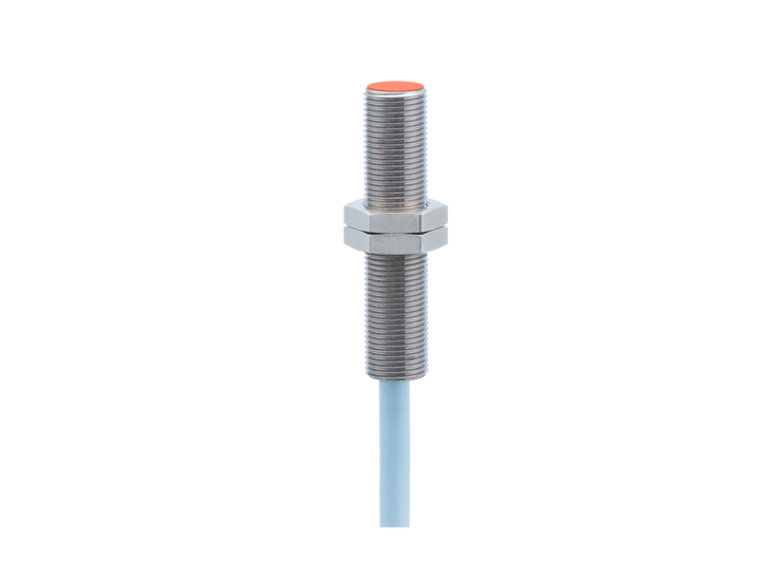

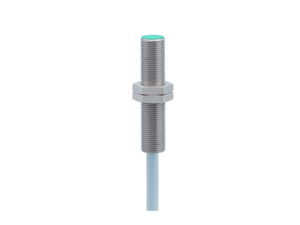

The Baumer IR12V.P04S-F55.NO1Z.9BCU/E011 11197189 is a flush-mounted, cylindrical threaded proximity sensor designed for vehicle applications. It features a nominal sensing distance of 4 mm with a hysteresis of 3 to 10% of Sr. Equipped with an NPN make function (NO) output circuit, it offers a switching frequency of 2 kHz and operates within a voltage supply range of 7 to 48 VDC. The sensor includes a red LED output indicator and supports a maximum output current of 200 mA. It is built with a PBT sensing face and a brass nickel-plated housing, measuring 12 mm in diameter and 55 mm in length. The sensor ensures durability and reliability with IP 68 and IP 69K protection ratings, and it is capable of operating in temperatures ranging from -40 to +85 °C. Safety features include short circuit and reverse polarity protection, and it meets various international standards including EN 60947-5-2:2007 and ISO 13766:2006. The sensor is also designed to withstand electromagnetic interference and emissions as per ISO 11452 and EN 55011 standards. It connects via a 2-meter cable and requires a maximum tightening torque of 15 Nm.
- Mounting type:
- Flush
- Special type:
- Vehicle
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 3 10 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- EN 60947-5-2:2007, Sec 8.6 EN 13309:2010 1) 3) EN ISO 14982:2009 1) 2) ISO 13766:2006 1)
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 7 48 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Off-Highway Electromagnetic immunity:
- ISO 11452-4: 200mA ISO 11452-2: 100V/m Based on UN / ECE R10 Rev 5 ch. 6.8 (no ECE type approval available)
- Off-Highway Emission:
- EN 55011 Based on UN / ECE R10 Rev 5 ch. 6.5, 6.6 (no ECE type approval available)
- Conducted inteference:
- ISO 7637-2, ISO 16750-2, details see section "Test pulses"
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 55 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 15 Nm (A: 10,5 Nm, B: 10,5 Nm)
- Operating temperature:
- -40 +85 °C
- Protection class:
- IP 68 (sensing face/sensor) IP 68 (1,5 m, 24 h) IP 69K (sensing face)
