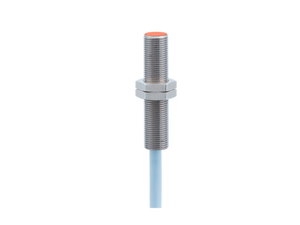

The Baumer IR12V.P04S-F55.PO1Z.9BCU/E011 11197220 is a flush-mounted, cylindrical threaded proximity sensor designed for vehicle applications. It features a nominal sensing distance of 4 mm with a hysteresis of 3 to 10% of Sr. Equipped with a red LED output indicator, this sensor operates with a PNP make function (NO) output circuit and supports a switching frequency of 2 kHz. It can handle a voltage supply range of 7 to 48 VDC and consumes a maximum of 10 mA with no load. The sensor ensures safety and durability with short circuit and reverse polarity protection, and can withstand operating temperatures from -40 to +85 °C. It is housed in brass nickel-plated material with a PBT sensing face, measures 12 mm in diameter and 55 mm in length, and connects via a 2-meter cable. The sensor is highly robust, offering protection ratings of IP 68 and IP 69K, ensuring performance in harsh environmental conditions. It meets various international standards including EN 60947-5-2:2007 and ISO 13766:2006, among others, and is designed to cope with electromagnetic interference and emissions as per ISO and EN standards.
- Mounting type:
- Flush
- Special type:
- Vehicle
- Nominal sensing distance Sn:
- 4 mm
- Hysteresis:
- 3 10 % of Sr
- Output indicator:
- LED red
- Approvals/certificates:
- EN 60947-5-2:2007, Sec 8.6 EN 13309:2010 1) 3) EN ISO 14982:2009 1) 2) ISO 13766:2006 1)
- Switching frequency:
- 2 kHz
- Voltage supply range +Vs:
- 7 48 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- PNP make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Off-Highway Electromagnetic immunity:
- ISO 11452-4: 200mA ISO 11452-2: 100V/m Based on UN / ECE R10 Rev 5 ch. 6.8 (no ECE type approval available)
- Off-Highway Emission:
- EN 55011 Based on UN / ECE R10 Rev 5 ch. 6.5, 6.6 (no ECE type approval available)
- Conducted inteference:
- ISO 7637-2, ISO 16750-2, details see section "Test pulses"
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 55 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 15 Nm (A: 10,5 Nm, B: 10,5 Nm)
- Operating temperature:
- -40 +85 °C
- Protection class:
- IP 68 (sensing face/sensor) IP 68 (1,5 m, 24 h) IP 69K (sensing face)
