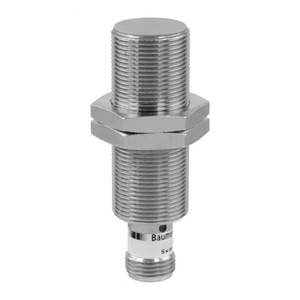

Baumer IR18.D08F-F60.UA1E.7BO 11170540 is a flush-mounted, cylindrical threaded sensor with a measuring distance of 0 to 8 mm and a high sensitivity of 1.25 V/mm. It offers excellent resolution, less than 0.02 mm statically and less than 0.03 mm dynamically, with a repeat accuracy of 0.03 mm. The sensor features external teach-in adjustment options including 1-point analog, 2-point analog, and factory reset, ensuring versatile and precise calibration. It has a linearity error of ±70 µm and temperature drift varies with the measuring range, ±3% up to 6 mm and ±5% up to 8 mm. The response time is less than 15 ms, and it operates on a voltage supply range of 12 to 36 VDC with a maximum current consumption of 15 mA when unloaded. The output circuit is analog 0 to 10 VDC, and it supports a load resistance of over 4000 Ohm. Safety features include short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated with a PBT sensing face, ensuring durability and resistance to environmental conditions. It connects via an M12 connector, supports a tightening torque of up to 40 Nm, and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, indicating high protection against dust and water ingress. Links to the datasheet and operating manual are provided for detailed specifications and usage instructions.
- Mounting type:
- Flush
- Special type:
- Linearized Factor 1
- Measuring distance Sd:
- 0 8 mm
- Sensitivity:
- 1,25 V/mm
- Resolution:
- < 0.02 mm (stat.) < 0.03 mm (dynam.)
- Repeat accuracy:
- 0.03 mm
- Adjustment:
- External Teach-in
- Teach:
- 1-point analog, 2-point analog, factory reset
- Linearity error:
- ± 70 µm
- Temperature drift:
- ± 3 % (Full Scale: S = 0 ... 6 mm) ± 5 % (Full Scale: S = 0 ... 8 mm)
- Teach-Feedback:
- LED yellow
- Response time (factory characteristic):
- < 15 ms
- Voltage supply range +Vs:
- 12 36 VDC
- Current consumption max. (no load):
- 15 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Load resistance:
- > 4000 Ohm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
