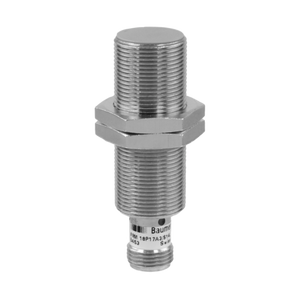

The Baumer IR18.P08F-11116612 is a quasi-flush, cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm and assured sensing distance of up to 81% of Sn. It features a temperature drift of ±10% of the real sensing distance and a hysteresis range of 3-20%. The sensor is equipped with a red LED output indicator and can detect various metals like mild steel, stainless steel, aluminum, and copper with 100% correction factor. It operates at a switching frequency of 500 Hz and supports a voltage supply range of 5 to 36 VDC with a maximum current consumption of 12 mA. The output circuit is NPN with a make function (NO), and it includes safety features such as short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material with a PBT sensing face, and it connects via an M12 4-pin connector. It can withstand operating temperatures from -25 to +75 °C and is rated IP67 for protection against dust and water ingress. The sensor also meets vibration and shock resistance standards according to IEC specifications.
- Mounting type:
- Quasi-flush
- Special type:
- Factor 1
- Nominal sensing distance Sn:
- 8 mm
- Assured sensing distance Sa:
- ? 81 % of Sn
- Real sensing distance Sr:
- ± 10 % von Sn
- Temperature drift:
- ± 10 % of Sr
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 100 %, aluminum 100 %, copper 100 %
- Reference object:
- Fe360 24 x 24 x 1 mm
- Switching frequency:
- 500 Hz
- Voltage supply range +Vs:
- 5 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN make function (NO)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 60 mm
- Connection types:
- Connector M12 4 pin
- Tightening torque max.:
- 40 Nm
- Weight:
- 63 g
- Operating temperature:
- -25 +75 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
- Vibration resistance:
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock resistance:
- IEC 60068-2-27:2009 100 g / 6 ms, 10 jolts per axis and direction
