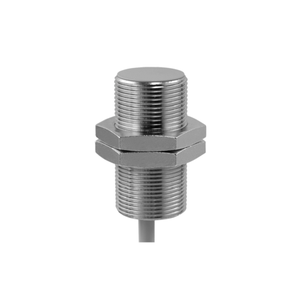

The Baumer IR18.P12S-F50.NC1Z.7BCV 11148902 is a flush-mounted, cylindrical threaded proximity sensor with an enhanced sensing distance of 12 mm. It features a nominal temperature drift of ±10% and a hysteresis range of 3 to 20% of Sr. The sensor is equipped with a red LED output indicator and operates with a switching frequency of 400 Hz. It supports a voltage supply range of 6 to 36 VDC and has a maximum current consumption of 10 mA. The output circuit is an NPN break function (NC) with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of brass nickel-plated material, and the sensing face is constructed from PBT. It has a dimension of 18 mm in diameter and a housing length of 50 mm. The sensor connects via a 2-meter cable and can withstand a tightening torque of up to 40 Nm. It operates within a temperature range of -25 to +75 °C and is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 12 mm
- Temperature drift:
- ± 10 %
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 70 %, aluminum 40 %
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 10 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 50 mm
- Connection types:
- Cable, L=2 m
- Tightening torque max.:
- 40 Nm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
