Description

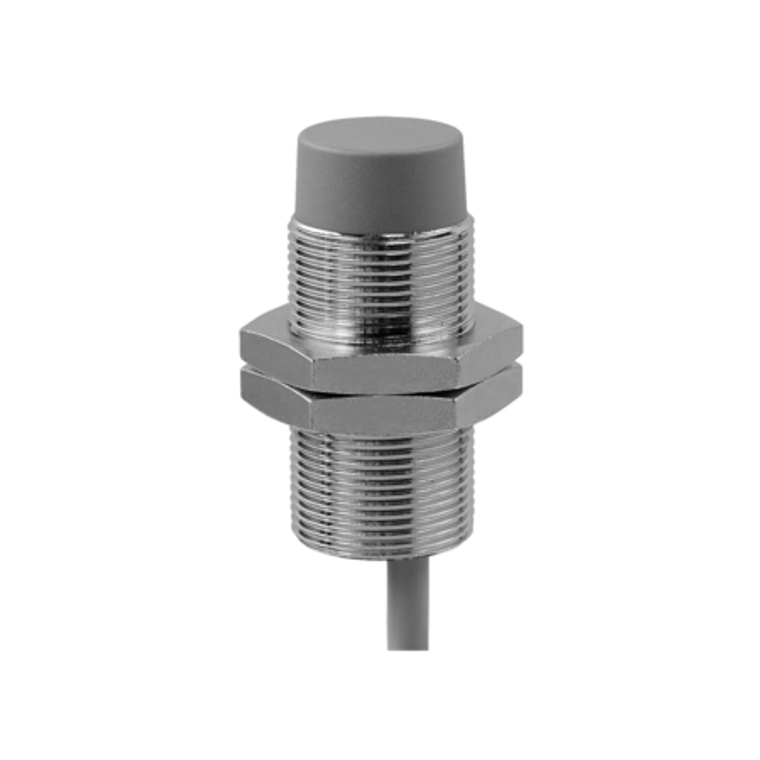

The Baumer IR18.P15S-N35.PO1Z.7BCV 11149138 is a non-flush, cylindrical threaded proximity sensor with an enhanced distance feature from the GammaProx series. It offers a nominal sensing distance of 15 mm and operates with a temperature drift of -5% to +15% across a temperature range of 0 to +65 °C. The sensor includes a red LED output indicator and has a correction factor of 100% for mild steel, 85% for stainless steel, and 55% for aluminum. It supports a switching frequency of 400 Hz and requires a voltage supply range of 6 to 36 VDC, with a maximum current consumption of 10 mA at no load. The output circuit is a PNP make function (NO) with a maximum output current of 100 mA. It features short circuit and reverse polarity protection, and is built with a PBT sensing face and brass nickel-plated housing. The sensor has a diameter of 18 mm, a housing length of 35 mm, and is connected via a 2-meter cable. It can withstand a tightening torque of up to 40 Nm and operates within a temperature range of 0 to +65 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress.
