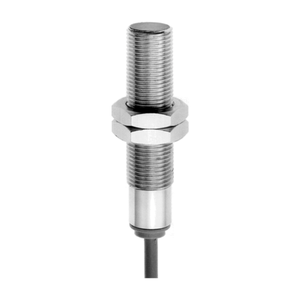

The Baumer IWFM 12U9501/O1 10237474 is a flush-mounted inductive sensor with a measuring distance of 1 to 2 mm and a reference distance of 1.35 to 1.65 mm. It features a measuring speed of less than 0.5 mm/ms and boasts a repeat accuracy of 0.02 mm and a linearity error of ±80 µm. The sensor operates with a temperature coefficient of 1 µm/(K mm) and requires a voltage supply range of 15 to 30 VDC, with a maximum current consumption of 20 mA when unloaded. It provides an analog output of 1 to 9 VDC and supports a load resistance of over 1000 Ohm. The sensor includes short circuit and reverse polarity protection, ensuring durability and reliability. The design is rectangular, made with a PBT sensing face and a brass nickel-plated housing, measuring 12 mm in width and 55 mm in housing length. It connects via a 2-meter cable and operates within a temperature range of 0 to +60 °C. The sensor is rated IP 67 for protection against dust and water ingress.
- Mounting type:
- Flush
- Measuring distance Sd:
- 1 2 mm
- Reference distance:
- 1.35 1.65 mm
- Measuring speed:
- < 0.5 mm / ms
- Repeat accuracy:
- 0.02 mm
- Linearity error:
- ± 80 µm
- Temperature coefficient:
- 1 µm / (K mm)
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- Analog 1 ... 9 VDC
- Load resistance:
- > 1000 Ohm
- Residual output ripple:
- < 0.5 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 55 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
