Baumer IWFM 18L9504/S35AU
Baumer
Baumer IWFM 18L9504/S35A 10147042
Baumer

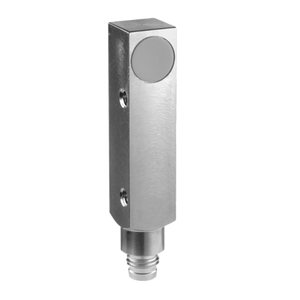

The Baumer IWFM 18L9504/S35A 10147042 is a high-precision inductive sensor designed for flush mounting with a measuring distance of 0 to 4 mm and a resolution of less than 0.005 mm. It offers repeat accuracy of 0.01 mm and a linearity error of ±160 µm. The sensor is equipped with a fast response time of less than 2 ms and operates within a voltage supply range of 15 to 30 VDC. It features dual output circuits, providing both analog 0 to 10 VDC and 4 to 20 mA signals, and supports load resistances of over 1000 Ohm for voltage output and 330 to 1000 Ohm for current output. The sensor includes short circuit and reverse polarity protection, ensuring durability and reliability. Constructed with a PBT sensing face and a brass nickel-plated housing, it measures 18 mm in diameter and 30 mm in length. The sensor connects via an M8 connector and operates in temperatures ranging from -10 to +70 °C. It is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Mounting type:
- Flush
- Measuring distance Sd:
- 0 4 mm
- Resolution:
- < 0.005 mm
- Repeat accuracy:
- 0.01 mm
- Linearity error:
- ± 160 µm
- Temperature drift:
- ± 4 % (Full Scale)
- Response time (factory characteristic):
- < 2 ms
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 40 mA
- Output circuit:
- Analog 0 ... 10 VDC Analog 4 ... 20 mA
- Load resistance:
- > 1000 Ohm (Uout ) / 330 ... 1000 Ohm (Iout)
- Voltage drop Vd:
- <7.2 VDC (Iout)
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 30 mm
- Connection types:
- Connector M8
- Operating temperature:
- -10 +70 °C
- Protection class:
- IP 67
