Baumer IWFM 20I9503/S35 10123625
Baumer

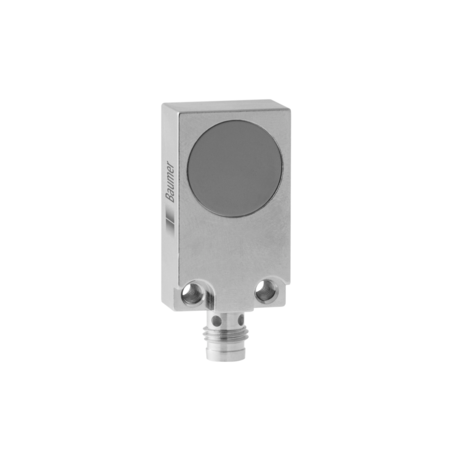

The Baumer IWFM 20I9503/S35 10123625 is a flush-mounted inductive sensor designed for precision distance measurement within a range of 2 to 3 mm, with a reference distance of 2.35 to 2.65 mm. It offers high repeat accuracy of 0.01 mm and a linearity error of ±60 µm. The sensor operates efficiently with a measuring speed of less than 1 mm/ms and has a temperature coefficient of 1 µm/(K mm). It requires a voltage supply range of 15 to 30 VDC and consumes a maximum of 35 mA with no load. The output is an analog 4 to 20 mA signal, compatible with load resistances between 500 and 1000 Ohm. It features short circuit and reverse polarity protection, ensuring durability and reliability. The sensor's housing is made of brass nickel-plated material, with a PBT sensing face, and it is designed in a rectangular shape measuring 20 mm in width and 35 mm in length. It connects via an M8 connector and operates within a temperature range of 0 to +60 °C. The sensor is IP 67 rated, indicating a high level of protection against dust and water ingress.
- Mounting type:
- Flush
- Measuring distance Sd:
- 2 3 mm
- Reference distance:
- 2.35 2.65 mm
- Measuring speed:
- < 1 mm / ms
- Repeat accuracy:
- 0.01 mm
- Linearity error:
- ± 60 µm
- Temperature coefficient:
- 1 µm / (K mm)
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- Analog 4 ... 20 mA
- Load resistance +Vs min.:
- < 500 Ohm
- Load resistance +Vs max.:
- < 1000 Ohm
- Residual output ripple:
- < 0.5 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 20 mm
- Housing length:
- 35 mm
- Connection types:
- Connector M8
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
