Baumer IWFM 20U9501/S35 10242449
Baumer
$480.30

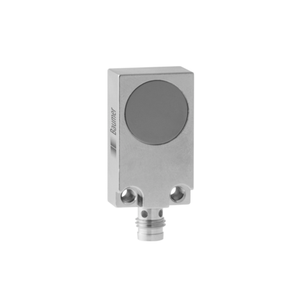

The Baumer IWFM 20U9501/S35 10242449 is a flush-mounted inductive sensor with a measuring distance of 2 to 5 mm and a reference distance of 3.25 to 3.75 mm. It offers high precision with a repeat accuracy of 0.01 mm and a linearity error of ±100 µm. The sensor operates at a speed of less than 1 mm/ms and has a temperature coefficient of 1 µm/(K mm). It requires a voltage supply range of 15 to 30 VDC and consumes a maximum of 20 mA with no load. The output is an analog 1 to 9 VDC, suitable for loads over 1000 Ohm, and features less than 0.5% residual output ripple. Safety features include short circuit and reverse polarity protection. The sensor has a rectangular design with a PBT sensing face and a brass nickel-plated housing, measuring 20 mm in dimension and 35 mm in housing length. It connects via an M8 connector and operates within a temperature range of 0 to +60 °C. The sensor is IP 67 rated, ensuring protection against dust and immersion.
- Mounting type:
- Flush
- Measuring distance Sd:
- 2 5 mm
- Reference distance:
- 3.25 3.75 mm
- Measuring speed:
- < 1 mm / ms
- Repeat accuracy:
- 0.01 mm
- Linearity error:
- ± 100 µm
- Temperature coefficient:
- 1 µm / (K mm)
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- Analog 1 ... 9 VDC
- Load resistance:
- > 1000 Ohm
- Residual output ripple:
- < 0.5 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- PBT
- Housing material:
- Brass nickel plated
- Dimension:
- 20 mm
- Housing length:
- 35 mm
- Connection types:
- Connector M8
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
