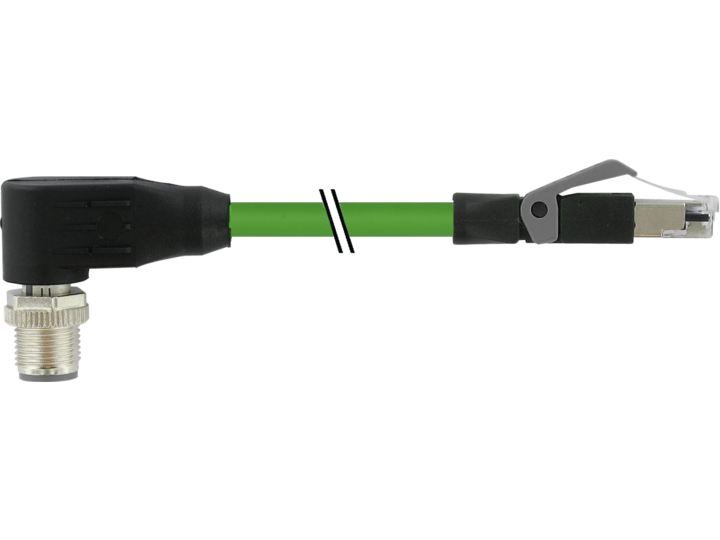

Baumer KSW 33A/KSG45AR0500G/E
Baumer
The Baumer KSW 33A/KSG45AR0500G/E is a robust cable designed for demanding applications, featuring a maximum operating voltage of 60 V DC and a UL-listed voltage of 30 V DC. It has a nominal voltage of 300 V and a maximum contact resistance of 30 mOhm. The cable can handle an operating current per contact of up to 1.5 A. It is designed with varying degrees of protection; Head A is IP67 rated, indicating full protection against dust and temporary immersion in water, while Head B has an IP20 rating, protecting against solid objects larger than 12.5 mm but not water. The cable is suitable for both mobile and fixed installations, with a minimum bending radius of 12 times the outer diameter for mobile applications and 8 times for fixed settings. It can also withstand torsion stress of ± 180 °/m. For more detailed specifications, refer to the datasheet available [here](https://www.baumer.com/medias/__secure__/Baumer_KSW-33A-KSG45AR0500G-E_EN_20240625_DS.pdf?mediaPK=9176906661918).
