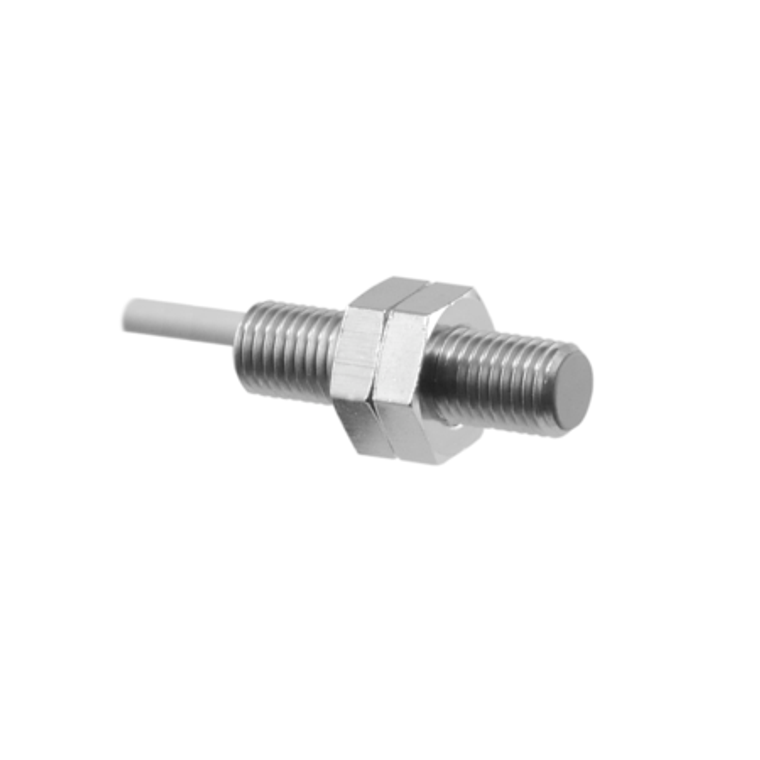

The Baumer MFRM 08N1524/PL 11050345 is a magneto-resistive sensor with a nominal sensing distance of 60 mm and features a red LED output indicator. It is designed for flush mounting and operates at a nominal point of 2.5 mT with a hysteresis range of 2 to 20% of Sr. The sensor offers high repeat accuracy of 1% of Sr and can handle a switching frequency of up to 5 kHz. It requires a voltage supply range of 10 to 30 VDC and consumes a maximum of 20 mA with no load. The output current capacity is 150 mA with an NPN make function (NO) output circuit. It includes short circuit and reverse polarity protection. The sensor's face is made of PBT, and it has a cylindrical threaded design with an 8 mm dimension. The housing is crafted from stainless steel and measures 30 mm in length. It connects via a 2 m PUR cable and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated, ensuring protection against dust and immersion. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_MFRM-08N1524-PL_EN_20221110_DS.pdf?mediaPK=9056400080926).
- Type:
- Magneto-resistive
- Nominal sensing distance Sn typ.:
- 60 mm
- Output indicator:
- LED red
- Mounting type:
- Flush
- Nominal operation point:
- 2.5 mT
- Hysteresis:
- 2 20 % of Sr
- Repeat accuracy:
- 1 % of Sr
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Voltage drop Vd:
- <3 VDC
- Output current:
- 150 mA
- Output circuit:
- NPN make function (NO)
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Material (sensing face):
- PBT
- Design:
- Cylindrical threaded
- Dimension:
- 8 mm
- Housing material:
- Stainless steel
- Housing length:
- 30 mm
- Connection types:
- Cable PUR, 2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
