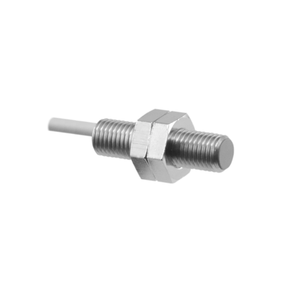

Baumer MFRM 08N3524/PL 11050346
Baumer
$220.20
The Baumer MFRM 08N3524/PL 11050346 is a magneto-resistive sensor with a nominal sensing distance of 60 mm and features a red LED output indicator. It is designed for flush mounting and operates at a nominal point of 2.5 mT with a hysteresis range of 2 to 20% of Sr. The sensor offers high repeat accuracy of 1% of Sr and a switching frequency of 5 kHz. It requires a voltage supply range of 10 to 30 VDC, consumes a maximum of 20 mA with no load, and supports an output current of 150 mA. The output circuit is an NPN break function (NC) with built-in short circuit and reverse polarity protection. The sensor's housing is made of stainless steel with a PBT sensing face, and it has a cylindrical threaded design with dimensions of 8 mm in diameter and 30 mm in length. It connects via a 2-meter PUR cable and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Type:
- Magneto-resistive
- Nominal sensing distance Sn typ.:
- 60 mm
- Output indicator:
- LED red
- Mounting type:
- Flush
- Nominal operation point:
- 2.5 mT
- Hysteresis:
- 2 20 % of Sr
- Repeat accuracy:
- 1 % of Sr
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Voltage drop Vd:
- <3 VDC
- Output current:
- 150 mA
- Output circuit:
- NPN break function (NC)
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Material (sensing face):
- PBT
- Design:
- Cylindrical threaded
- Dimension:
- 8 mm
- Housing material:
- Stainless steel
- Housing length:
- 30 mm
- Connection types:
- Cable PUR, 2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
