Baumer

Baumer MY-COM A50/200 10223784

(No reviews yet) Write a Review
SKU:
10223784
MPN:
10223784
Condition:
New
Repeat accuracy:
0.001 mm
Activating force:
50 cN
Mech. pre-run / overrun:
- / 1,5 mm approx.
Measurement type:
Contact with medium
Direction of approach:
Frontal
DC voltage max.:
15 VDC
Switch. current DC max.:
2 mA
AC voltage max.:
24 VAC
Switch. current AC max.:
50 mA
Output circuit:
Break function (NC) mechanical
Activating pin:
Zirconium oxide ZrO2
Housing material:
Brass nickel plated
Dimension:
8 mm
Design:
Cylindrical threaded
Housing length:
20 mm
Connection types:
Cable, L=2 m
Operating temperature:
-20 … +75 °C
Protection class:
IP 50
Datasheet:
View
$354.00

Description

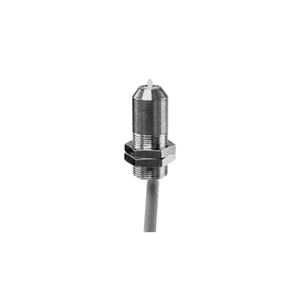

The Baumer MY-COM A50/200 10223784 is a high-precision mechanical contact sensor with a repeat accuracy of 0.001 mm and an activating force of 50 cN. It features a zirconium oxide ZrO2 activating pin and a brass nickel-plated housing, ensuring durability and resistance to wear. The sensor operates within a voltage range of up to 15 VDC and 24 VAC, with maximum switching currents of 2 mA for DC and 50 mA for AC. Its cylindrical threaded design, measuring 8 mm in diameter and 20 mm in housing length, allows for easy installation. The sensor is equipped with a break function (NC) mechanical output circuit and can be connected via a 2-meter cable. It operates effectively in temperatures ranging from -20 to +75 °C and offers IP 50 protection against dust.
