Baumer

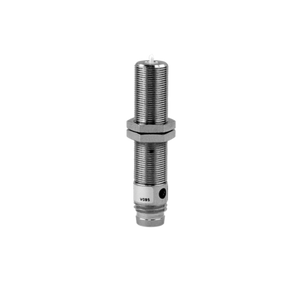

Baumer MY-COM F100/200 10223725

(No reviews yet) Write a Review
SKU:
10223725
MPN:
10223725
Condition:
New
Repeat accuracy:
0.001 mm
Activating force:
100 cN
Mech. pre-run / overrun:
- / 1,5 mm approx.
Measurement type:
Contact with medium
Direction of approach:
Frontal
DC voltage max.:
15 VDC
Switch. current DC max.:
2 mA
AC voltage max.:
24 VAC
Switch. current AC max.:
50 mA
Output circuit:
Break function (NC) mechanical
Activating pin:
Zirconium oxide ZrO2
Housing material:
Brass nickel plated
Dimension:
8 mm
Design:
Cylindrical threaded
Housing length:
28 mm
Connection types:
Cable, L=2 m
Operating temperature:
-20 … +75 °C
Protection class:
IP 50
Datasheet:
View
$379.00

Description

The Baumer MY-COM F100/200 10223725 is a high-precision mechanical contact sensor with a repeat accuracy of 0.001 mm and an activating force of 100 cN. It features a zirconium oxide activating pin and a brass nickel-plated housing, ensuring durability and resistance to wear. The sensor operates within a temperature range of -20 to +75 °C and is designed with a cylindrical threaded 8 mm diameter and a 28 mm housing length. It supports both AC and DC power, with maximum voltages of 24 VAC and 15 VDC respectively. The output circuit is a break function (NC) mechanical type, suitable for precise control applications. Connection is facilitated via a 2-meter cable, and the device is rated at IP 50 for protection against dust. Ideal for applications requiring frontal approach and precise positioning, this sensor is versatile for various industrial uses.
