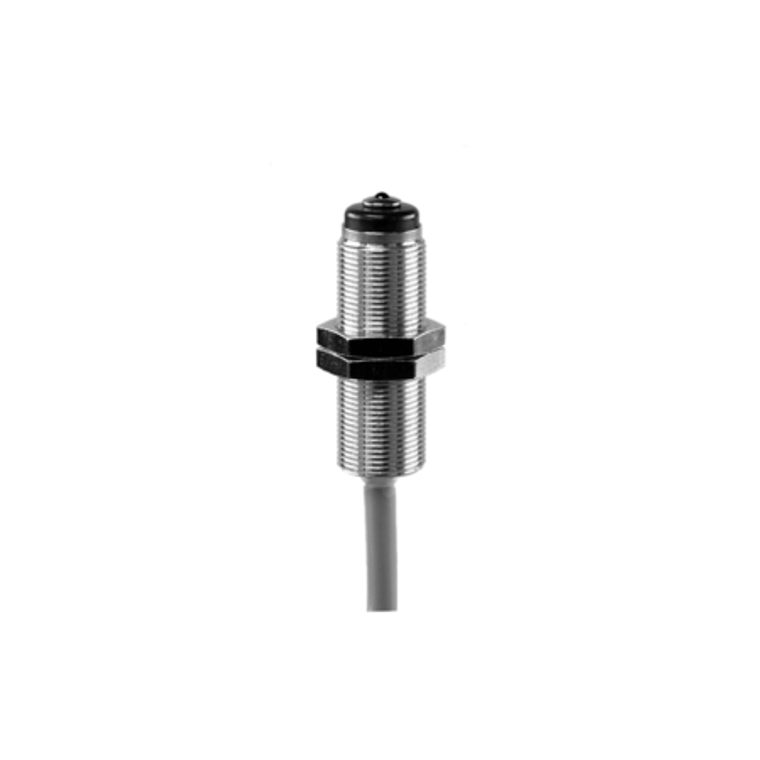

The Baumer MY-COM H75/80 10251037 is a high-precision mechanical contact sensor with a repeat accuracy of 0.001 mm and an activating force of 75 cN. It features a mechanical pre-run of - and an overrun of approximately 0.6 mm. This sensor operates with a maximum DC voltage of 15 VDC and a maximum AC voltage of 24 VAC, supporting a maximum switching current of 2 mA for DC and 50 mA for AC. The output circuit is a break function (NC) mechanical type. The activating pin is made of ruby, and the housing is constructed from brass nickel-plated material. It has a cylindrical threaded design with a dimension of 8 mm and a housing length of 21 mm. Connection is facilitated via an 80 cm cable. Suitable for operating temperatures ranging from -20 to +75 °C, it is protected against ingress with a rating of IP 67.
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 0,6 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- DC voltage max.:
- 15 VDC
- Switch. current DC max.:
- 2 mA
- AC voltage max.:
- 24 VAC
- Switch. current AC max.:
- 50 mA
- Output circuit:
- Break function (NC) mechanical
- Activating pin:
- Ruby
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 21 mm
- Connection types:
- Cable, 80 cm
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 67
