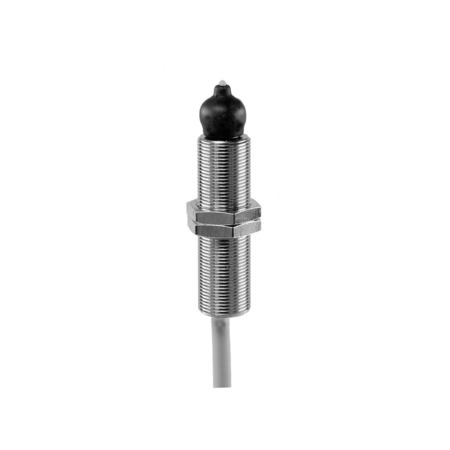

The Baumer MY-COM M75N80 10229686 is a high-precision cylindrical threaded sensor with a repeat accuracy of 0.001 mm and an activating force of 75 cN. It features a mechanical pre-run/overrun of approximately -/1.5 mm and operates on a voltage supply range of 5 to 36 VDC. The sensor supports a maximum load current of 50 mA at 24 VDC and requires a minimum load resistance of 480 Ohm. It includes an NPN make function (NO) output circuit and is equipped with a zirconium oxide ZrO2 activating pin. The housing is made of brass nickel-plated material, ensuring durability, with dimensions of 8 mm in diameter and 27 mm in length. The sensor is connected via an 80 cm cable and operates within a temperature range of -20 to +75 °C. It is designed to be contact with medium and can be approached frontally. The Baumer MY-COM M75N80 is IP 67 certified, indicating a high level of protection against dust and water ingress. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/My_Com_M75N80_web_EN.pdf?mediaPK=8799764873246).
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- Voltage supply range +Vs:
- 5 36 VDC
- Load current max. at 24 VDC:
- 50 mA
- Output circuit:
- NPN make function (NO)
- Load resistance min.:
- 480 Ohm
- Activating pin:
- Zirconium oxide ZrO2
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 27 mm
- Connection types:
- Cable, 80 cm
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
