Description

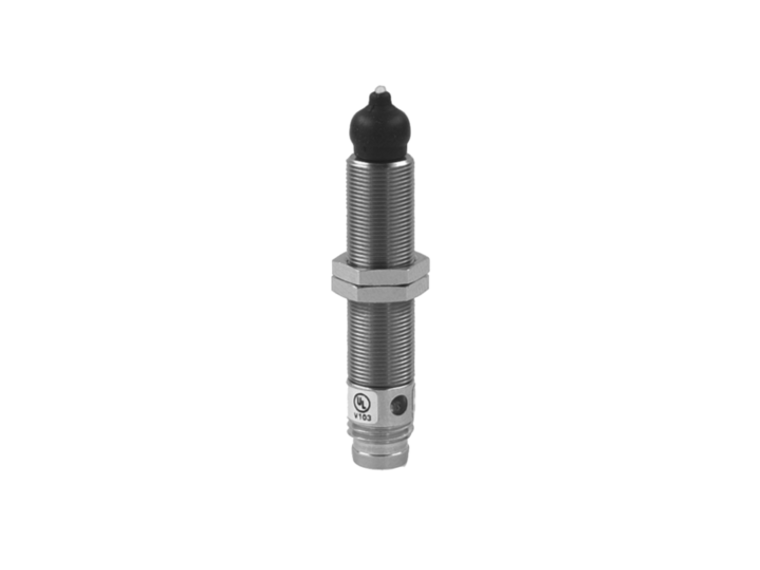

The Baumer MY-COM M75P/S35L 10119393 is a high-precision sensor with a repeat accuracy of 0.001 mm and an activating force of 75 cN. It features a mechanical pre-run/overrun of approximately -/1.5 mm and operates through contact with the medium. The sensor is designed for frontal approach and includes a red LED output indicator. It supports a voltage supply range of 5 to 36 VDC, with a maximum load current of 50 mA at 24 VDC. The output circuit is a PNP make function (NO) with a minimum load resistance of 480 Ohm. The activating pin is made of zirconium oxide ZrO2, and the housing is crafted from brass nickel-plated material. This cylindrical threaded sensor has a dimension of 8 mm and a housing length of 37 mm. It connects via an M8 connector and operates within a temperature range of -20 to +75 °C. The sensor is IP 67 rated, indicating a high level of protection against dust and water. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/My_Com_M75P_S35L_web_EN.pdf?mediaPK=8799766577182).
