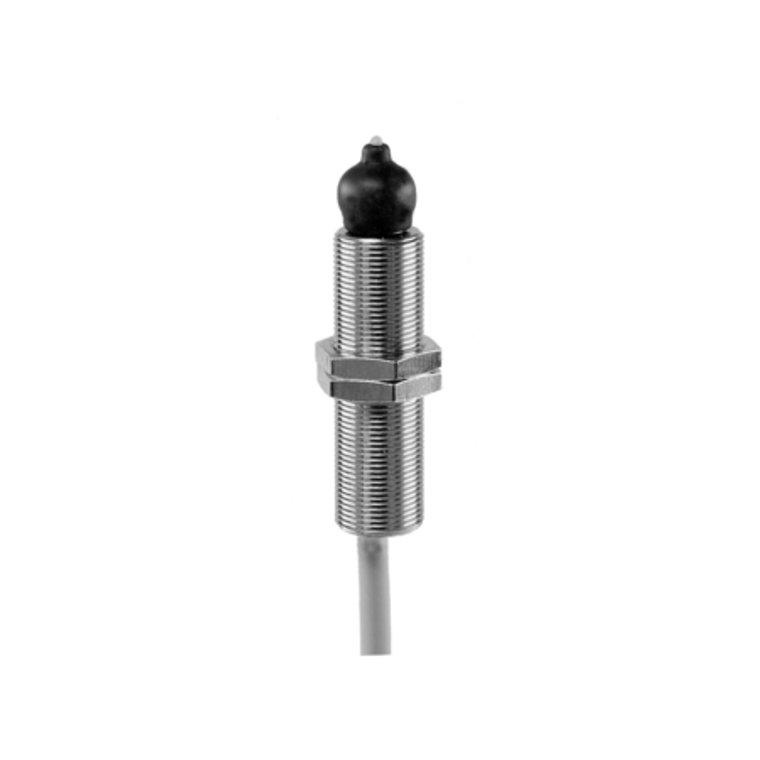

The Baumer MY-COM M75P80 10229687 is a high-precision sensor with a repeat accuracy of 0.001 mm and an activating force of 75 cN. It features a mechanical pre-run/overrun of approximately -/1.5 mm and operates through contact with the medium. The sensor has a frontal direction of approach and is powered by a voltage supply range of 5 to 36 VDC, with a maximum load current of 50 mA at 24 VDC. It includes a PNP make function (NO) output circuit and requires a minimum load resistance of 480 Ohm. The activating pin is made of zirconium oxide ZrO2, and the housing is crafted from brass nickel-plated material. This cylindrical threaded sensor has a dimension of 8 mm, a housing length of 27 mm, and is connected via an 80 cm cable. It operates within a temperature range of -20 to +75 °C and is rated IP 67 for protection against dust and water ingress.
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- Voltage supply range +Vs:
- 5 36 VDC
- Load current max. at 24 VDC:
- 50 mA
- Output circuit:
- PNP make function (NO)
- Load resistance min.:
- 480 Ohm
- Activating pin:
- Zirconium oxide ZrO2
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 27 mm
- Connection types:
- Cable, 80 cm
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 67
