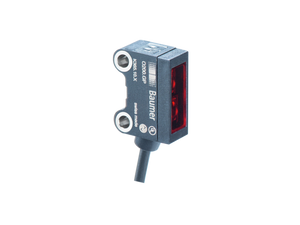

Baumer O200.DL-GM2I.72CV/A014_F160

Baumer
SKU:
11242972
Availability:
Contact us to confirm availability and lead times.
$393.70
Condition:
New
Current Stock:
The Baumer O200.DL-GM2I.72CV/A014_F160 is a high-precision distance measuring sensor with a measuring range of 20 to 200 mm. It features dual-channel IO-Link communication, adjustable via IO-Link, and provides visual feedback through green and yellow LEDs for power and output status, respectively. The sensor offers repeat accuracy options ranging from ? 50 to 2000 µm depending on the mode selected—Raw, High Speed, Standard, or High Accuracy—with a linearity error of ± 2% Mr. It utilizes a pulsed red laser diode with a wavelength of 680 nm, classified as Laser class 1, ensuring safe operation. Response times vary by mode, from less than 1.4 ms in Raw mode to less than 15 ms in High Accuracy mode. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, housed in durable plastic with PMMA optics. It operates effectively within a temperature range of -25 to +50 °C and is protected against short circuits, reverse polarity, and environmental conditions up to IP 67. The sensor is powered by a 10 to 30 VDC supply, with a maximum current consumption of 45 mA at 10 VDC. It is equipped with a 4-pin, 2-meter cable for connectivity.
Type:
Distance measuring
Version:
IO-Link dual channel
Measuring distance Sd:
20 … 200 mm
Adjustment:
IO-Link
Power on indication:
LED green
Output indicator:
LED yellow
Repeat accuracy:
? 50 … 2000 µm (Raw) ? 50 … 1500 µm (High Speed) ? 50 … 1000 µm (Standard) ? 50 … 500 µm (High Accuracy)
Linearity error:
± 2 % Mr
Beam type:
Point
Suppression of reciprocal influence:
Yes
Alignment optical axis:
< 1,5°
Temperature drift:
< 0,2 % Sde/KLight source=Pulsed red laser diode
Wave length:
680 nm
Laser class:
1
Response time / release time:
< 1.4 ms (Raw) < 2.5 ms (High Speed Mode) < 5 ms (Standard Mode) < 15 ms (High Accuracy Mode)
Voltage supply range +Vs:
10 … 30 VDC
Current consumption max. (no load):
45 mA (@ 10 VDC)
Voltage drop Vd:
<2 VDC
Output circuit:
Push-pull
Output current:
50 mA, sum of all outputs
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Width / diameter:
8 mm
Height / length:
25.1 mm
Depth:
15.8 mm
Design:
Rectangular
Housing material:
Plastic (ASA, PMMA)
Front (optics):
PMMA
Connection types:
Cable 4 pin, 2 m
Protection class:
IP 67
Operating temperature:
-25 … +50 °C
Datasheet:
View
