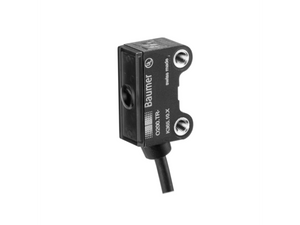

Baumer O200.EL-NV1T.72CV/FREC_H006 11230162 is a through beam sensor receiver designed for precision detection with a pulsed red laser diode light source. It offers an actual range of 5 meters and a nominal range of 6 meters, capable of recognizing objects as small as 3 mm, or 0.5 mm with an aperture. The sensor features a flashing output indicator for alignment or soiled lens detection, LED indicators for power status and output, and qTeach for easy sensitivity adjustment. It supports suppression of reciprocal influence, ensuring reliable operation with response times as low as 0.1 ms. The unit operates on a 10-30 VDC voltage supply, with a typical current consumption of 10 mA at 24 VDC, and includes short circuit and reverse polarity protection. Its compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, with a threaded sleeve M3 for mechanical mounting and a durable plastic housing. The sensor is equipped with a 4-pin, 2-meter PVC cable and operates within a temperature range of -25 to +50 °C, meeting IP 67 protection standards.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Light source:
- Use with pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Smallest object recognizable typ.:
- 3 mm (0,5 mm with aperture)
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 0.1 ms < 0.12 ms
- Jitter:
- < 0.03 ms < 0.05 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -25 +50 °C
- Protection class:
- IP 67
