Description

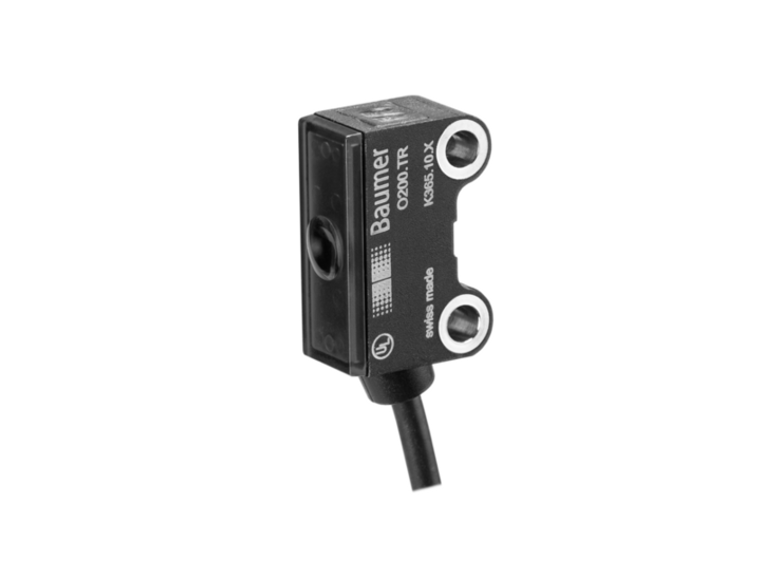

The Baumer O200.EL-PV1T.72CV/FREC 11230136 is a through beam sensor designed for precision detection with a receiver that operates using a pulsed red laser diode. It offers an actual range of 5 meters and a nominal range of 6 meters, capable of recognizing objects as small as 3 mm, which can be further reduced to 0.5 mm with an aperture. This sensor features a flashing output indicator for alignment or soiled lens detection, and LED indicators for power status and output. It includes qTeach for easy sensitivity adjustment and has built-in suppression to prevent reciprocal influence. The response and release times are exceptionally quick, less than 0.1 ms and 0.12 ms respectively, with minimal jitter. It operates on a voltage supply range of 10 to 30 VDC and has a low current consumption. The output function can be set to light or dark operate, and it includes PNP complementary output circuit with a maximum output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It connects via a 4-pin, 2-meter PVC cable and operates effectively in temperatures ranging from -25 to +50 °C. This sensor is IP 67 rated, ensuring protection against dust and water ingress.
