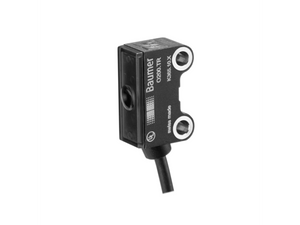

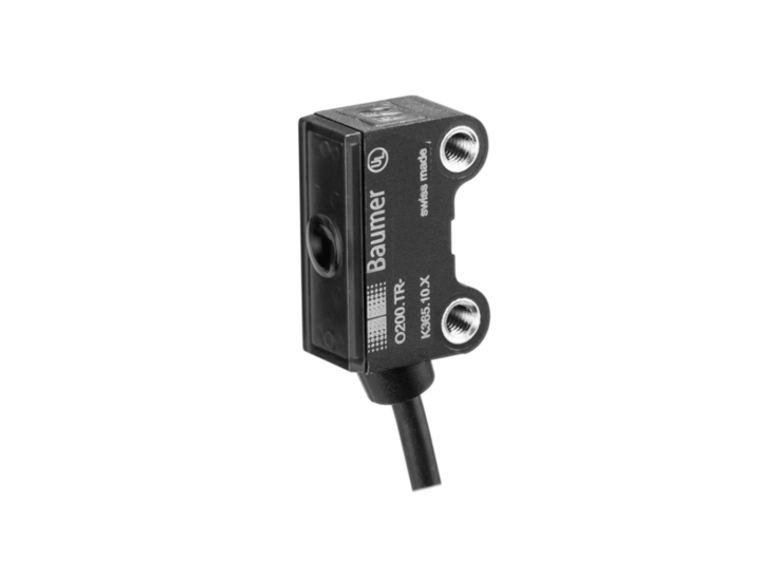

Baumer O200.EL-PV1T.72CV/FREC_H006 11230160
Baumer
$283.00
The Baumer O200.EL-PV1T.72CV/FREC_H006 11230160 is a through beam sensor designed for precision detection with a receiver that operates using a pulsed red laser diode. It offers an actual range of 5 meters and a nominal range of 6 meters, capable of recognizing objects as small as 3 mm, which can be further reduced to 0.5 mm with an aperture. This sensor features a flashing output indicator for alignment or soiled lens detection, and LED indicators for power status and output. It includes qTeach for easy sensitivity adjustment and has built-in suppression to avoid reciprocal influence. The response time is exceptionally quick at less than 0.1 ms, with minimal jitter. It operates on a voltage supply range of 10 to 30 VDC and has a low current consumption. The sensor supports both light and dark operating modes with a PNP complementary output circuit and can handle an output current of up to 50 mA. It includes protection against short circuits and reverse polarity. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, with a durable plastic housing and threaded stainless steel sleeves for easy mounting. It connects via a 4-pin, 2-meter PVC cable and operates effectively in temperatures ranging from -25 to +50 °C. This sensor is IP 67 rated, ensuring protection against dust and water ingress.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Light source:
- Use with pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Smallest object recognizable typ.:
- 3 mm (0,5 mm with aperture)
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 0.1 ms < 0.12 ms
- Jitter:
- < 0.03 ms < 0.05 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -25 +50 °C
- Protection class:
- IP 67
- Datasheet:
- View
