Description

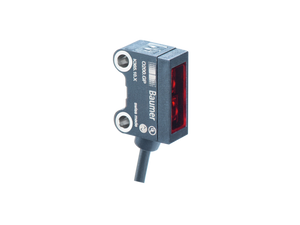

Baumer O200.ER-PV1Z.72CV 11212607 is a through beam sensor receiver designed for precise object detection with an actual range of 5 meters and a nominal range of 6 meters. It can recognize objects as small as 5 mm, and even 0.5 mm with an aperture. The device features a flashing output indicator for alignment or soiled lens notification, and LED indicators for power status and output. It operates without sensitivity adjustment and has suppression for reciprocal influence. The response time is less than 0.5 ms, ensuring quick reactions. It supports a voltage supply range of 10 to 30 VDC, with typical current consumption of 16 mA at 24 VDC. The sensor offers both light and dark operating modes with a PNP complementary output circuit and can handle an output current of 50 mA. It includes short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It connects via a 4-pin, 2-meter PVC cable and operates in temperatures ranging from -25 to +50 °C. The sensor is IP 67 rated for dust and water resistance.
