Baumer

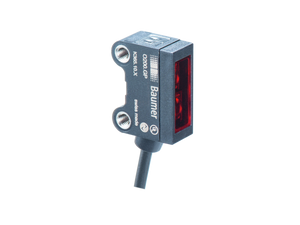

Baumer O200.GL-GW1J.72CV/F160_H006_B005 11230967

(No reviews yet) Write a Review

Write a Review

Baumer

Baumer O200.GL-GW1J.72CV/F160_H006_B005 11230967

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

11230967

UPC:

MPN:

Condition:

New

Type:

Background suppression

Sensing distance Tw:

20 … 175 mm

Sensing range Tb:

3 … 192 mm

Smallest object recognizable typ.:

0.5 mm at 100 mm

Power on indication:

LED green

Alignment / soiled lens indicator:

Flashing output indicator

Output indicator:

LED yellow

Sensing distance adjustment:

Teach-in and IO-Link

Distance to focus:

160 mm

Suppression of reciprocal influence:

Yes

Beam type:

Point

Alignment optical axis:

< 1,5°Light source=Pulsed red laser diode

Laser class:

1

Wave length:

680 nm

Response time / release time:

? 0.25 ms (High Speed Mode)

Jitter:

? 0.06 ms (High Speed Mode)

Voltage supply range +Vs:

10 … 30 VDC

Current consumption max. (no load):

20 mA (@ 10 VDC)

Current consumption typ.:

10 mA (@ 24 VDC)

Voltage drop Vd:

<2 VDC

Output function:

Light / dark operate

Output circuit:

Push-pull

Output current:

50 mA

Short circuit protection:

Yes

Reverse polarity protection:

Yes

Width / diameter:

8 mm

Height / length:

25.1 mm

Depth:

15.8 mm

Design:

Rectangular

Mechanical mounting:

Threaded sleeves M3 (stainless steel)

Housing material:

Plastic (ASA, PMMA)

Front (optics):

PMMA

Connection types:

Cable 4 pin, 2 m

Cable characteristics:

PVC / PVC 4 x 0.08 mm²

Protection class:

IP 67

Operating temperature:

-20 … +50 °C

Datasheet:

View

Operating Manual:

View
