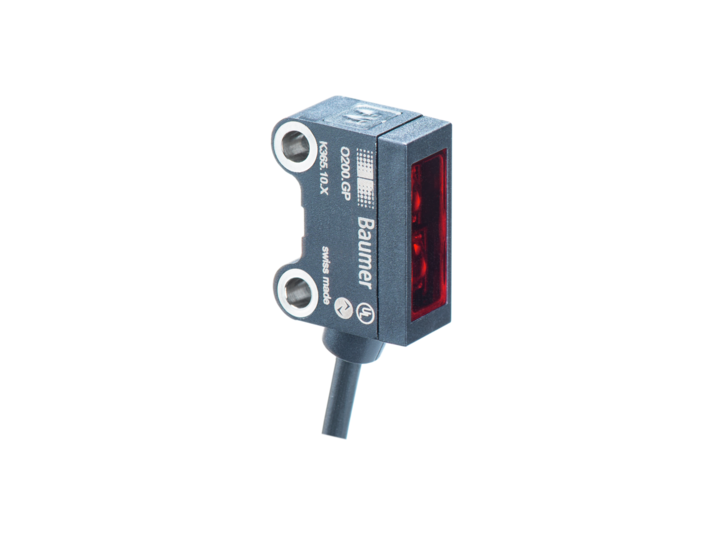

Baumer O200.GL-NV1T.72NV/F040 11231118
Baumer
$347.60
The Baumer O200.GL-NV1T.72NV/F040 11231118 is a high-precision sensor with background suppression and a sensing distance ranging from 20 to 120 mm. It features a pulsed red laser diode light source, laser class 1, and a wavelength of 680 nm, ensuring accurate detection with a response time of ? 0.5 ms. The sensor can recognize objects as small as 0.05 mm at 40 mm distance. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling issues. The sensor is equipped with qTeach for easy sensing distance adjustment and offers features like short circuit and reverse polarity protection. It operates within a voltage supply range of 10 to 30 VDC and has an IP67 protection class, making it suitable for harsh environments. The compact, rectangular design with a smooth stainless steel sleeve and plastic housing ensures durability and ease of installation.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb:
- 3 132 mm
- Smallest object recognizable typ.:
- 0.05 mm at 40 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Distance to focus:
- 40 mm
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1,5°Light source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 680 nm
- Response time / release time:
- ? 0.5 ms
- Jitter:
- ? 0.12 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -20 +50 °C
- Datasheet:
- View
