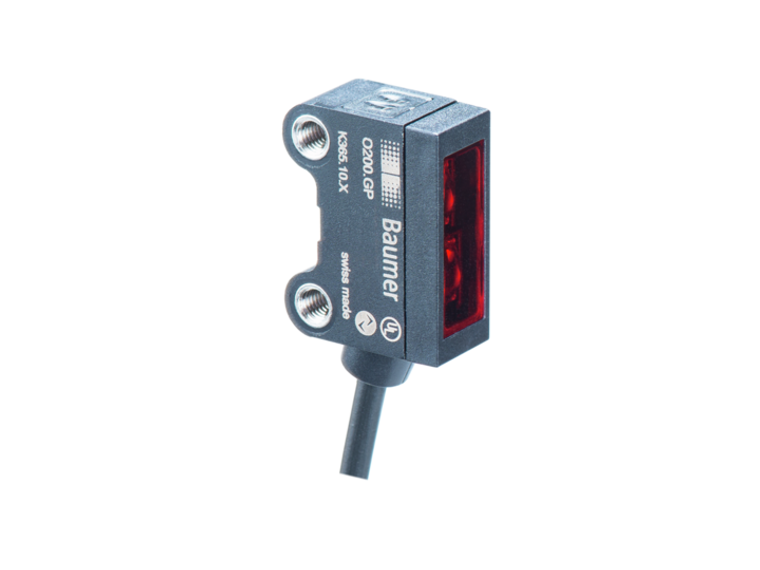

The Baumer O200.GL-PV1T.72CV/F040_H006 11231140 is a high-precision sensor with background suppression and a sensing distance ranging from 20 to 120 mm. It features a pulsed red laser diode light source, laser class 1, and a wavelength of 680 nm, ensuring accurate detection with a response time of ? 0.5 ms. The sensor can recognize objects as small as 0.05 mm at 40 mm distance. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling issues. The sensor is equipped with qTeach for easy sensing distance adjustment and offers both light and dark operating modes through its PNP complementary output circuit. It supports a voltage supply range of 10 to 30 VDC and features short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, with a threaded sleeve M3 for mechanical mounting and a durable plastic housing. It is IP67 rated for protection against dust and water ingress, making it suitable for a wide range of industrial applications. Operating temperatures range from -20 to +50 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb:
- 3 132 mm
- Smallest object recognizable typ.:
- 0.05 mm at 40 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Distance to focus:
- 40 mm
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1,5°Light source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 680 nm
- Response time / release time:
- ? 0.5 ms
- Jitter:
- ? 0.12 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -20 +50 °C
