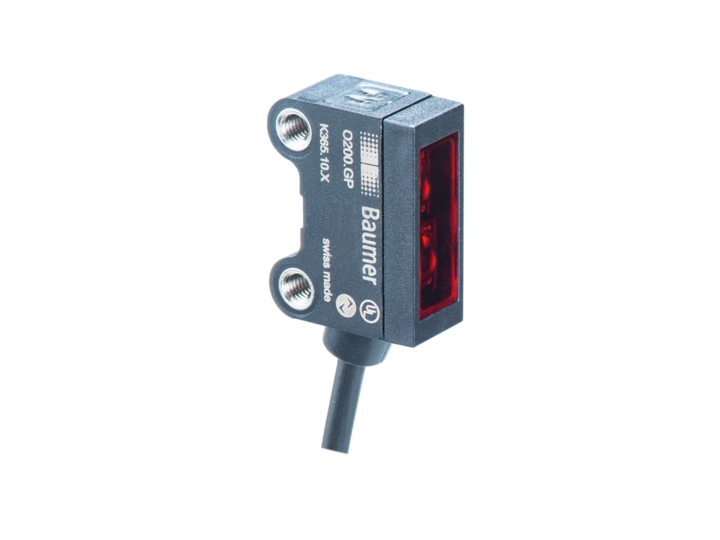

Baumer O200.GP-NV1T.72CV/E022_H006 11230693
Baumer
$267.60
The Baumer O200.GP-NV1T.72CV/E022_H006 11230693 is a high-performance sensor with background suppression and a line beam for precise detection. It features a sensing distance of 20 to 120 mm and a sensing range of 3 to 132 mm, capable of recognizing objects as small as 8 mm at 60 mm. Equipped with a pulsed PinPoint LED light source with a wavelength of 644 nm, it ensures quick response and release times of ? 2 ms. The sensor includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling. It operates on a voltage supply range of 10 to 30 VDC and includes features like short circuit and reverse polarity protection. The sensor's robust design includes a plastic housing with threaded stainless steel sleeves for mounting, and it is IP67 rated for protection against dust and water ingress. Ideal for various applications, it ensures reliable performance in environments ranging from -25 to +50 °C.
- Type:
- Background suppression
- Version:
- Line beam
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb:
- 3 132 mm
- Smallest object recognizable typ.:
- 8 mm at 60 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Line
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 644 nm
- Response time / release time:
- ? 2 ms
- Jitter:
- ? 2 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
