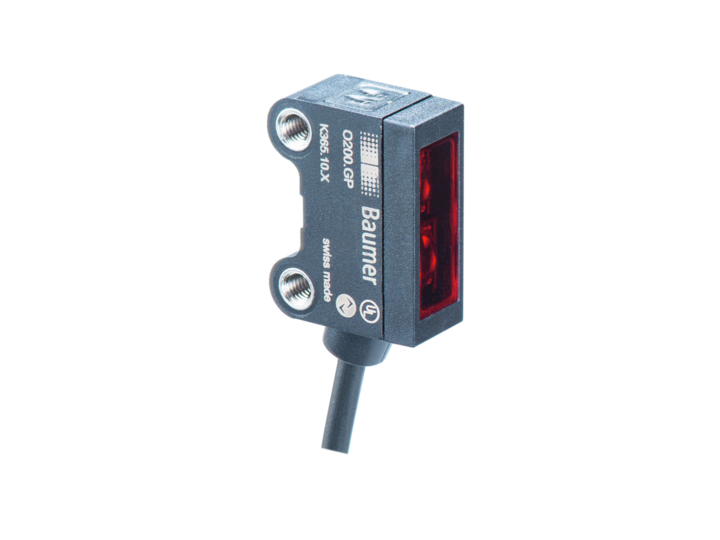

The Baumer O200.GP-NV1T.72NV/H006 11212653 is a high-performance sensor with background suppression and a sensing distance ranging from 20 to 120 mm. It features a pulsed PinPoint LED light source with a wavelength of 644 nm and a quick response time of less than 0.5 ms. This sensor can detect objects as small as 0.25 mm at 40 mm distance. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling issues. The sensor offers easy distance adjustment via qTeach and is equipped with features like short circuit and reverse polarity protection. It operates within a voltage supply range of 10 to 30 VDC and has a low current consumption. The compact, rectangular design measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, with a threaded sleeve M3 for mechanical mounting and a flylead connector M8 for electrical connections. The housing is made of durable plastic (ASA, PMMA) with a PMMA front optics, ensuring IP 67 protection against dust and water, suitable for operating temperatures from -30 to +50 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb:
- 3 132 mm
- Smallest object recognizable typ.:
- 0.25 mm at 40 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 644 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -30 +50 °C
