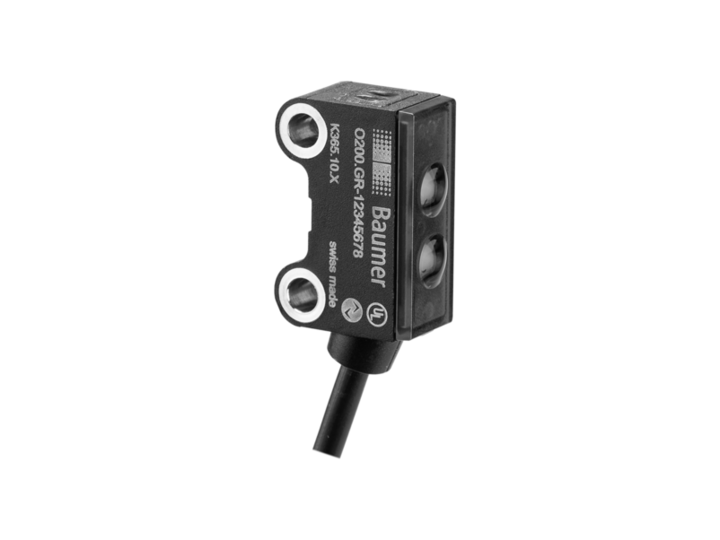

The Baumer O200.GR.F-NV1Z.72NV/BX15 11212580 is a high-performance sensor with background suppression and a fixed focus version. It features a sensing distance of 15 mm and a sensing range of 3 to 15 mm, capable of recognizing objects as small as 0.05 mm at 10 mm. The sensor is equipped with a green LED for power indication and a yellow LED output indicator, which flashes to signal alignment or lens soiling. It operates without the need for sensing distance adjustment and includes features to suppress reciprocal influence. The sensor uses a pulsed red LED light source with a wavelength of 644 nm and boasts a quick response time of less than 1 ms. It operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 16 mA at 24 VDC. The output function can operate in light or dark conditions, and it includes NPN complementary output circuit with a maximum output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It connects via a Flylead connector M8 4 pin with a 200 mm PVC cable. Rated IP 67, it is robust against dust and water ingress, suitable for operating temperatures ranging from -30 to +50 °C.
- Type:
- Background suppression
- Version:
- Fixed focus
- Sensing distance Tw:
- 15 mm
- Sensing range Tb:
- 3 15 mm
- Smallest object recognizable typ.:
- 0.05 mm at 10 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- No
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 30 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -30 +50 °C
