Description

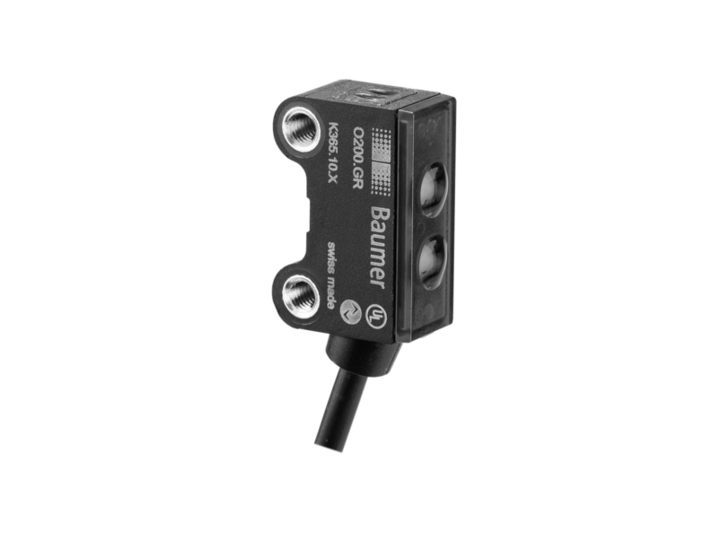

The Baumer O200.GR.F-PV1Z.72NV/H006_BX15 11212627 is a high-performance sensor with background suppression and a fixed focus. It features a sensing distance of 15 mm and a sensing range of 3 to 15 mm, capable of recognizing objects as small as 0.05 mm at 10 mm. The sensor is equipped with a pulsed red LED light source with a wavelength of 644 nm and a fast response time of less than 1 ms. It operates on a voltage supply range of 10 to 30 VDC and includes a green LED for power indication and a yellow LED for output status. The sensor offers both light and dark operating modes with PNP complementary output and includes short circuit and reverse polarity protection. It has a compact, rectangular design with dimensions of 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, and is constructed from durable plastic materials with an IP67 protection rating, making it suitable for harsh environments. The sensor is easy to install with threaded sleeves M3 and connects via a 200 mm long M8 4-pin flylead connector.
