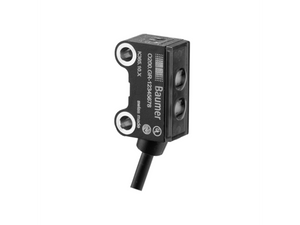

The Baumer O200.GR-GL1E.72CV/T007 11210543 is a high-performance sensor with background suppression and a sensing distance ranging from 15 to 80 mm. It features a pulsed red LED light source with a wavelength of 644 nm and a rapid response time of less than 1 ms. This sensor is designed for precise detection with the capability to recognize objects as small as 0.25 mm at 40 mm. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling issues. The sensor offers external Teach-in for easy sensing distance adjustment and is equipped with push-pull output function. It operates within a voltage supply range of 10 to 30 VDC and includes protection against short circuits and reverse polarity. The compact, rectangular design measures 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It is IP67 rated for protection against dust and water ingress and can operate in temperatures ranging from -25 to +50 °C. The sensor connects via a 2-meter, 4-pin PVC cable.
- Type:
- Background suppression
- Sensing distance Tw:
- 15 80 mm
- Sensing range Tb:
- 7 80 mm
- Smallest object recognizable typ.:
- 0.25 mm at 40 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- External Teach-in / 1-Step Teach-in
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 30 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
- Datasheet:
- View
