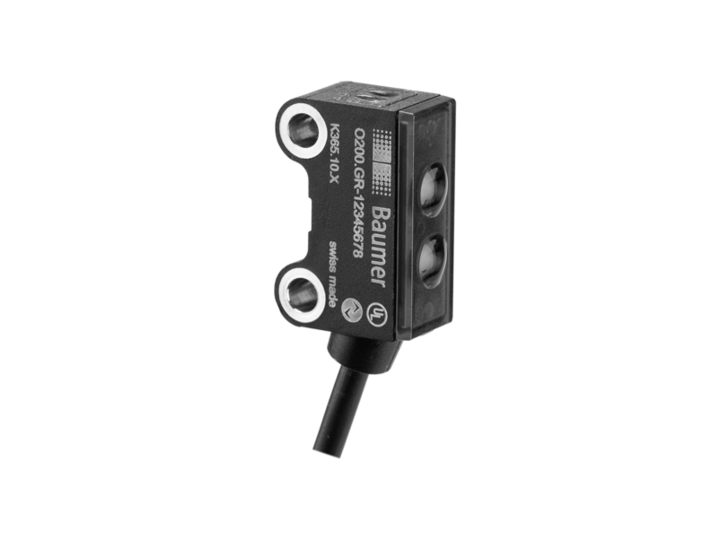

The Baumer O200.GR-NV1Z.72CV/BX30 11210529 is a high-performance sensor with background suppression and a sensing distance of 30 mm. It features a pulsed red LED light source with a wavelength of 644 nm and a rapid response time of less than 1 ms. This sensor is designed for precise detection with the capability to recognize objects as small as 0.25 mm at 30 mm distance. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling issues. The sensor operates without the need for sensing distance adjustment and includes features like suppression of reciprocal influence and short circuit protection. It supports a voltage supply range of 10 to 30 VDC and has a low current consumption. The robust design includes a plastic housing with PMMA front optics, and it is IP67 rated for dust and water resistance. The sensor is equipped with a 4-pin, 2-meter PVC cable and is suitable for operating temperatures from -25 to +50 °C. Ideal for applications requiring precise and reliable object detection in harsh environments.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 mm
- Sensing range Tb:
- 7 30 mm
- Smallest object recognizable typ.:
- 0.25 mm at 30 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- No
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 30 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
