Description

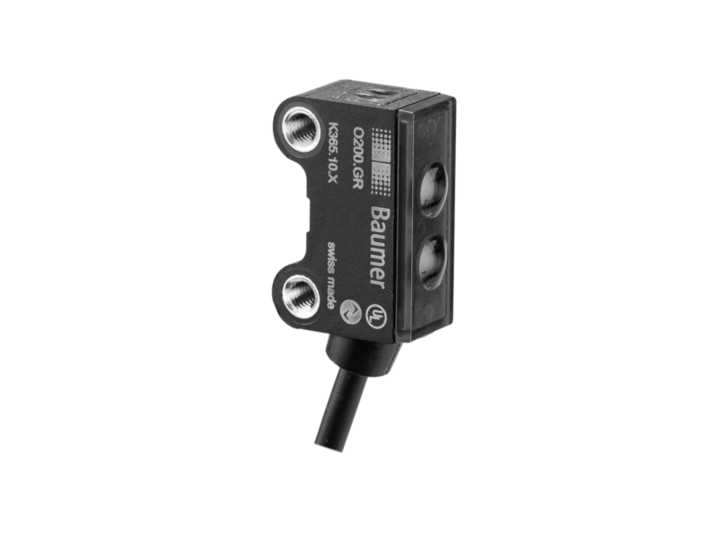

Baumer O200.GR-NV1Z.72CV/H006_BX30 11210564 is a background suppression sensor with a sensing distance of 30 mm and a range of 7 to 30 mm. It can recognize objects as small as 0.25 mm at 30 mm distance. Features include a green LED for power indication, a yellow LED output indicator, and a flashing output for alignment or soiled lens notification. It does not require sensing distance adjustment and offers suppression of reciprocal influence. The sensor uses a pulsed red LED light source with a wavelength of 644 nm and has a response time of less than 1 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 16 mA at 24 VDC. The output function can operate in light or dark conditions, and it includes NPN complementary output circuit with a maximum output current of 50 mA. It also features short circuit and reverse polarity protection. The sensor's dimensions are 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, with a rectangular design and threaded sleeves M3 for mechanical mounting. The housing is made of plastic (ASA, PMMA) with a PMMA front optics. It connects via a 4-pin, 2 m PVC cable and is rated IP 67 for protection, suitable for operating temperatures from -25 to +50 °C.
