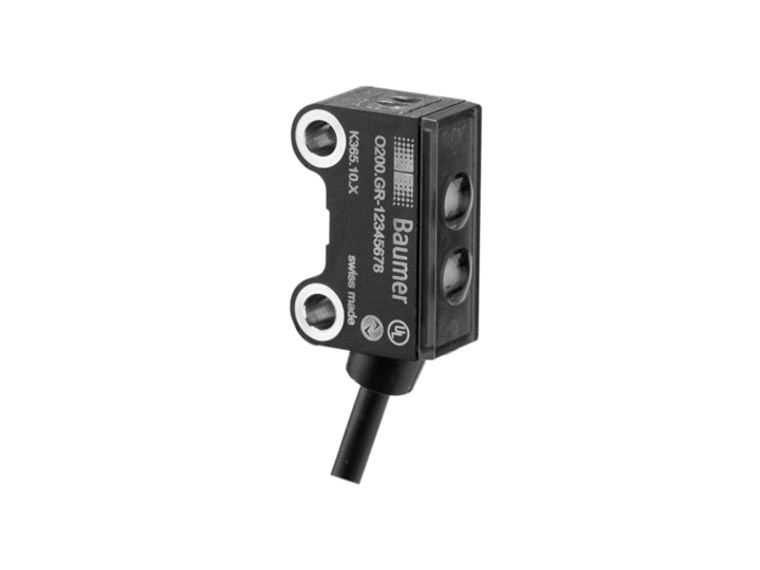

The Baumer O200.GR-PV1Z.72CV/BX50 11210541 is a high-performance sensor with background suppression and a sensing range of 7 to 50 mm. It can detect objects as small as 0.25 mm at 30 mm distance. Features include a pulsed red LED light source with a wavelength of 644 nm, response times under 1 ms, and no need for sensing distance adjustment. It operates on a 10 to 30 VDC supply, consuming a maximum of 20 mA. The sensor includes both light and dark operating modes, PNP complementary output, and is equipped with short circuit and reverse polarity protection. Its compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 14.1 mm in depth, with a smooth stainless steel sleeve for mechanical mounting. The housing is made of durable plastic, and it connects via a 4-pin, 2-meter PVC cable. Rated IP 67, it is suitable for harsh environments, operating between -25 and +50 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 50 mm
- Sensing range Tb:
- 7 50 mm
- Smallest object recognizable typ.:
- 0.25 mm at 30 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- No
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 30 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
